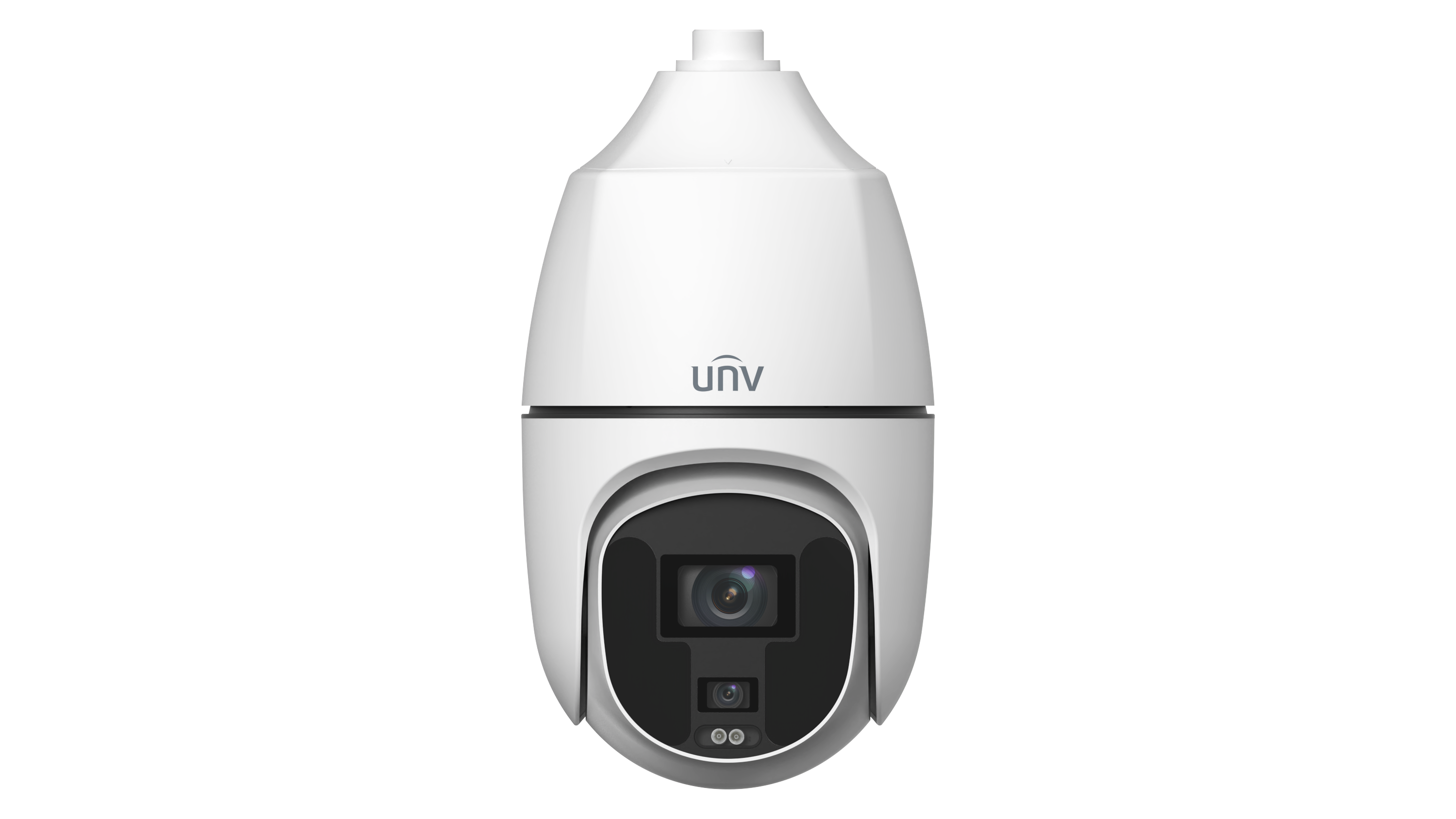

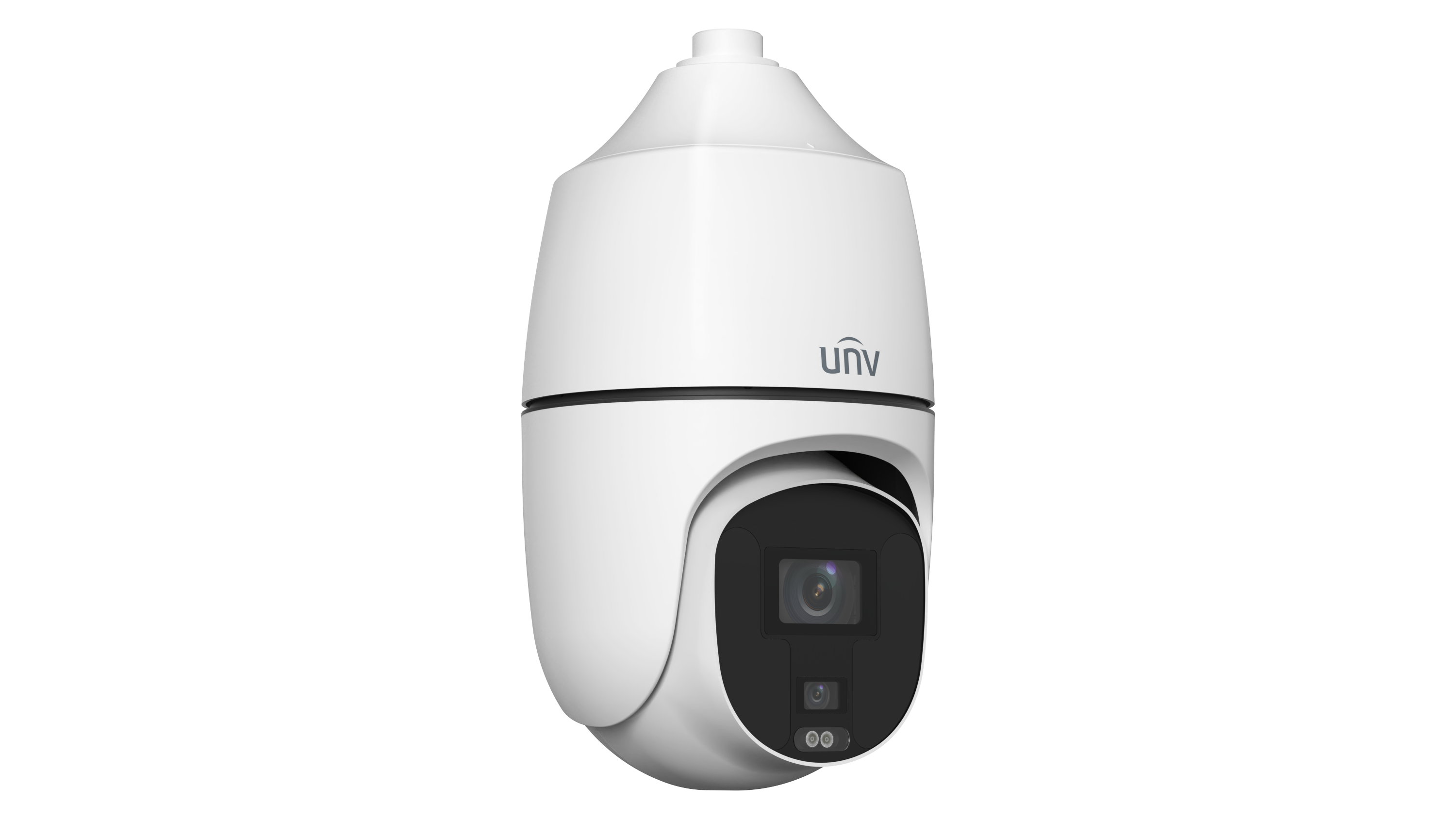

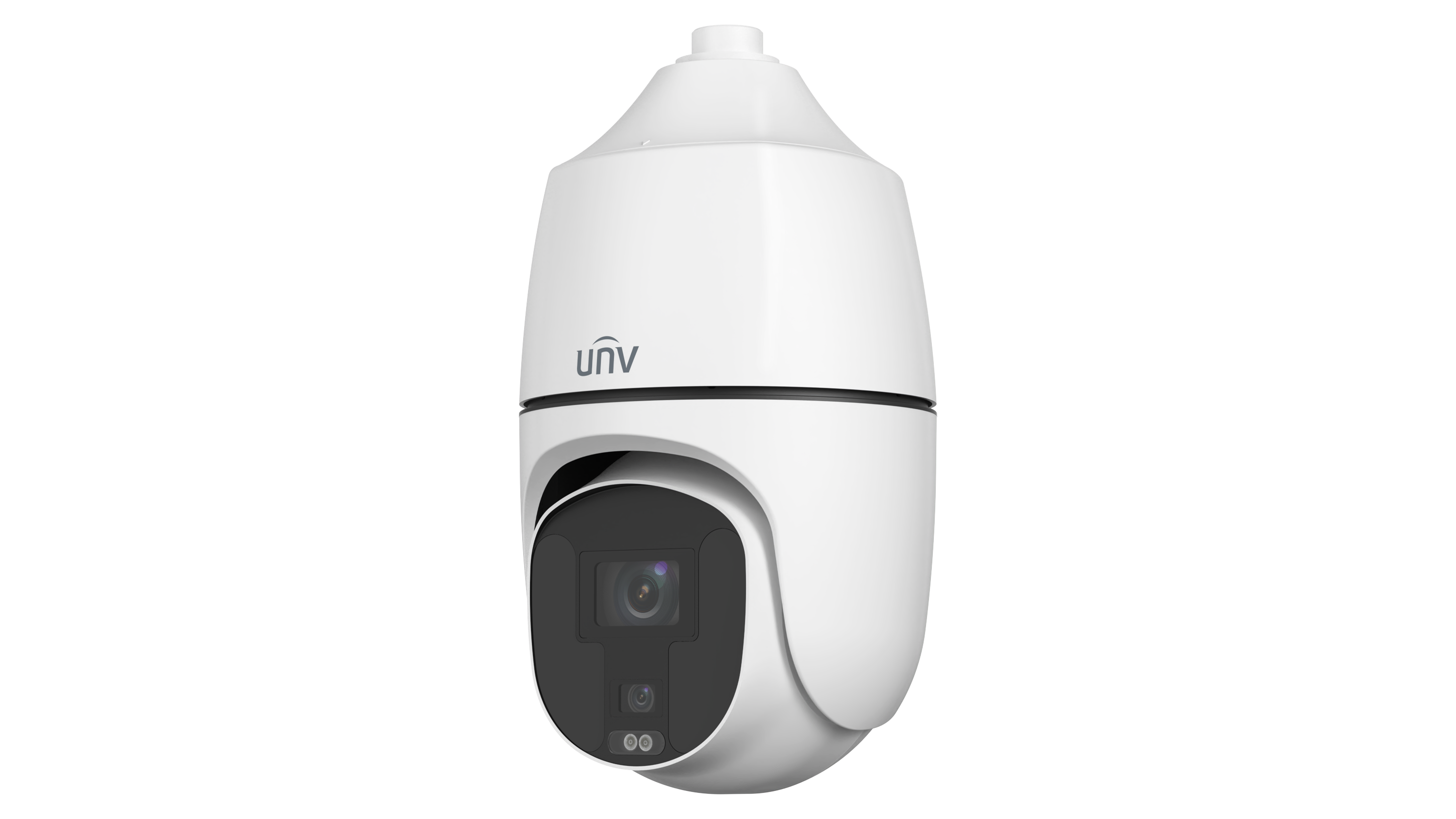

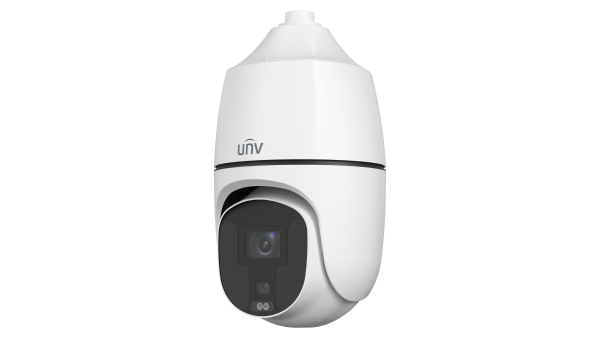

IPC68188EFW-X25-F40G-VH | ||||||||
Channel | ||||||||
Camera | ||||||||
Sensor | 1/1.8" CMOS | 1/1.2" CMOS | ||||||
Max Resolution | 8 MP | 8 MP | ||||||
Min. Illumination | Color: 0.0005 lux (F1.6, AGC ON) 0 lux with IR/Warm light |
Color: 0.0005 lux (F1.6, AGC ON) 0 lux with IR |
||||||
Day/Night | IR-cut filter with auto switch (ICR) | IR-cut filter with auto switch (ICR) | ||||||
Shutter | Auto/Manual, 1 to 1/100000 s | Auto/Manual, 1 to 1/100000 s | ||||||
WDR | 120 dB | 120 dB | ||||||
S/N | >56 dB | >56 dB | ||||||
Lens | ||||||||
Digital Zoom | N/A | 16X | ||||||
Optical Zoom | N/A | 25X | ||||||
Iris Type | Fixed | P-iris | ||||||
Video | ||||||||
Frame Rate-Third Stream | D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps; | D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps; | ||||||
Frame Rate-Main Stream | 8MP (3840*2160), Max 30fps; 6MP (3072*2048), Max 30fps; 4MP (2688*1520), Max 30fps; 4MP (2560*1440), Max 30fps; 2MP (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps; | 8MP (3840*2160), Max 30fps; 6MP (3072*2048), Max 30fps; 4MP (2688*1520), Max 30fps; 4MP (2560*1440), Max 30fps; 2MP (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps; | ||||||
Frame Rate-Sub Stream | 2MP (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps; | 2MP (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps; | ||||||
Frame Rate Recommendation | 3840*2160@30fps+1080P@30fps+D1@30fps 3072*2048@30fps+1080P@30fps+D1@30fps |
3840*2160@30fps+1080P@30fps+D1@30fps 3072*2048@30fps+1080P@30fps+D1@30fps |
||||||
Privacy Mask | 24 areas, up to 8 areas per scene | 24 areas, up to 8 areas per scene | ||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | Ultra 265, H.265, H.264, MJPEG | ||||||
Video Bit Rate | 128 Kbps to 16 Mbps | 128 Kbps to 16 Mbps | ||||||
U-code | Support | Support | ||||||
ROI | Support | Support | ||||||
Video Stream | Triple Streams | Triple Streams | ||||||
OSD | Up to 10 OSDs | Up to 10 OSDs | ||||||
DORI | ||||||||
DORI Distance (Lens) | 4 mm | 10 ~ 250mm | ||||||
Intelligent | ||||||||
Metadata Analyse | Support human body, human face, motor vehicle and non-motor vehicle image capture and attribute collection | Support human body, human face, motor vehicle and non-motor vehicle image capture and attribute collection | ||||||
People Counting | N/A | Support People Flow Counting and Crowd Density Monitoring | ||||||
Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | ||||||
Image | ||||||||
Defog | Digital Defog | Optical Defog | ||||||
White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 | ||||||
Digital Noise Reduction | 2D/3D DNR | 2D/3D DNR | ||||||
Smart IR | N/A | Support | ||||||
Flip | Normal, Flip Vertical, Flip Horizontal, 180° | Normal, Flip Vertical, Flip Horizontal, 180° | ||||||
HLC | Support | Support | ||||||
BLC | Support | Support | ||||||
Heatwave Reduction | N/A | Support | ||||||
Illuminator | ||||||||
Light On/Off Control | Auto/Manual | Auto/Manual | ||||||
Illumination Distance (IR) | N/A | 250 m (820.2 ft) | ||||||
Illumination Distance (Warm Light) | 30 m (98.4 ft) | N/A | ||||||
Events | ||||||||
Basic Detection | Motion Detection, Audio Detection, Tampering Alarm | Motion Detection, Audio Detection, Tampering Alarm | ||||||
General Function | Watermark, IP Address Filtering, Alarm Input, Alarm Output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | Watermark, IP Address Filtering, Access Policy, Alarm Output, Alarm Input, User Authentication, RTSP Authentication, ARP Protection | ||||||
PTZ | ||||||||
Pan Range | 360° | 360° | ||||||
Pan Speed | 0.1°/s ~ 180°/s | 0.1°/s ~ 180°/s | ||||||
Tilt Range | -15° ~ 90° | -15° ~ 90° | ||||||
Tilt Speed | 0.1°/s ~ 180°/s | 0.1°/s ~ 180°/s | ||||||
Number of Presets | N/A | 1024 | ||||||
Preset Patrol | N/A | 16 patrols, up to 64 presets for each patrol | ||||||
Patrol Stay Time | 15 s to 1800 s | 15 s to 1800 s | ||||||
Preset Image Freeze | N/A | Support | ||||||
Home Position | N/A | Support | ||||||
Audio | ||||||||
Audio Compression | G.711U, G.711A | G.711U, G.711A | ||||||
Audio Bitrate | 128 Kbps | 128 Kbps | ||||||
Two-way Audio | Support | Support | ||||||
Suppression | Support | Support | ||||||
Sampling Rate | 8 kHz, 16 kHz | 8 kHz, 16 kHz | ||||||
Storage | ||||||||
Edge Storage | Micro SD, up to 512 GB | Micro SD, up to 512 GB | ||||||
Network Storage | ANR, NAS (NFS) | ANR, NAS (NFS) | ||||||
Network | ||||||||
Protocols | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS | ||||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK | ONVIF (Profile S, Profile G, Profile T), API, SDK | ||||||
User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | Up to 32 users. 3 user levels: administrator, common user and operator | ||||||
Security | TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | ||||||
Client | EZStation, UNV-Link, UNV-Link Pro | EZStation, UNV-Link, UNV-Link Pro | ||||||
Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ | ||||||
Interface | ||||||||
Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] | ||||||
Alarm I/O | 7/2 | 7/2 | ||||||
Serial Port | 1 channel RS485 interface | 1 channel RS485 interface | ||||||
Built-in Mic | N/A | N/A | ||||||
Built-in Speaker | N/A | N/A | ||||||
WIFI | N/A | N/A | ||||||
Network | 1 × RJ45 10 M/100 M/1000 M Base-TX Ethernet + 1 × 100 M/1000 M SFP | 1 × RJ45 10 M/100 M/1000 M Base-TX Ethernet + 1 × 100 M/1000 M SFP | ||||||
Certification | ||||||||
EMC | CE-EMC (EN 55032: 2015+A1: 2020, EN 61000-3-3: 2013+A1: 2019, EN IEC 61000-3-2: 2019+A1: 2021, EN 55035: 2017+A11: 2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
CE-EMC (EN 55032: 2015+A1: 2020, EN 61000-3-3: 2013+A1: 2019, EN IEC 61000-3-2: 2019+A1: 2021, EN 55035: 2017+A11: 2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
||||||
Safety | CE LVD (EN 62368-1:2014+A11:2017) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
CE LVD (EN 62368-1:2014+A11:2017) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
||||||
Environment | CE-RoHS (2011/65/EU; (EU) 2015/863) | CE-RoHS (2011/65/EU; (EU) 2015/863) | ||||||
Protection | IP66 (IEC 60529: 1989+AMD1: 1999+AMD2: 2013) | IP66 (IEC 60529: 1989+AMD1: 1999+AMD2: 2013) | ||||||
General | ||||||||
Power | DC24V (±25%), AC24V (±25%) | DC24V (±25%), AC24V (±25%) | ||||||
Power Consumption | MAX 63W | MAX 63W | ||||||
Power Interface | Wires with cold-pressed terminal | Wires with cold-pressed terminal | ||||||
Dimensions | Ø 270 x 497mm (Ø 10.6" x 19.6") (Ø x H) | Ø 270 x 497mm (Ø 10.6" x 19.6") (Ø x H) | ||||||
Weight | 10.08kg (22.2lb) | 10.08kg (22.2lb) | ||||||
Working Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) | ||||||
Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) | ||||||
Surge Protection | 6 KV | 6 KV | ||||||
Reset Button | Support | Support | ||||||
Web Client Language | 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak | 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak |
