Control Center

Control center is the working area for security officers. Back-end devices in the video surveillance solution are also deployed here. The security manager can easily check the live video, playback and do other operations through various methods, such as B/S client, C/S client. The record should be well stored, without any loss.

Reliable & Low-TCO System

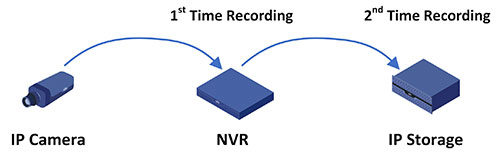

Dual Recording

Recording the gambling area is extremely important for casino video surveillance solution. UNV system supports dual recording technology. Video can be recorded in both NVR and IP storage device to avoid loss.

NGN Architecture

Media streaming and signaling are processed separately. Video management server only handle the signaling. The server’s failure will not influence the video storage and live view.

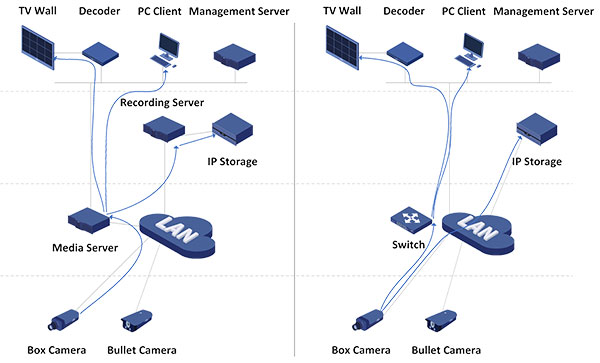

Traditional Architecture               NGN Architecture

In traditional architecture, video recording would be lost when recording server breakdown. This issue is overcome in UNV’s NGN architecture where network camera sends the stream to IP SAN directly based on iSCSI standard storage protocol. It significantly decreases the investment because there is no media server and recording server in NGN architecture.

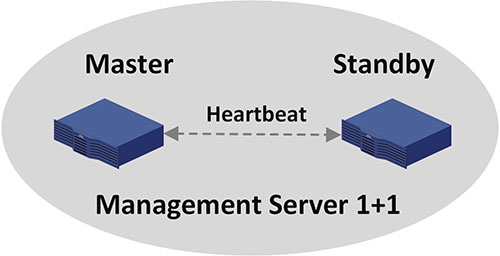

VMS 1+1 Hot Spare

UNV VMS supports 1+1 hot spare function. If the Master VMS breaks down, the Standby VMS will take over the service immediately. All service and data will be transferred back to the Master VMS when it recovers.

High-Reliable IP Storage

Different kinds of carrier-class hardware designs ensure the high reliability and ability to work 7/24.


Fully Redundant Modular Design

Anti-Dust & Sulfide Alarm Design

Anti-Vibration HDD Module

ANR

UNV cameras can automatically store video recordings into camera’s SD card when network is disconnected. Once the network is restored, the video recordings will be sent back to storage server. Thus, all of video recordings would be saved even network fails temporarily.

N+1 Structure for IP Storage

UNV IP SAN supports N+1 hot backup. If any active IP SAN fails, the standby IP SAN will automatically take over the service.

Cost-Effective System

UNV IP storage adopts unique structure allowing 60 bays at a height of 4U with front panel hot swappable. Hence, UNV solution can save more than 60% rack space and using much less power consumption under the same condition.

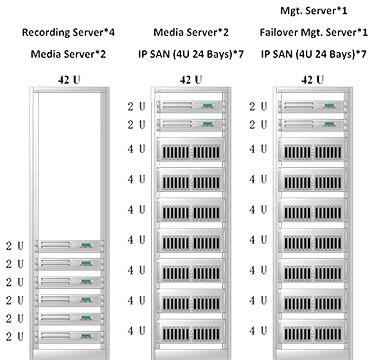

Traditional System

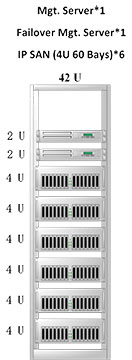

UNV system

Abundant VMS Functions

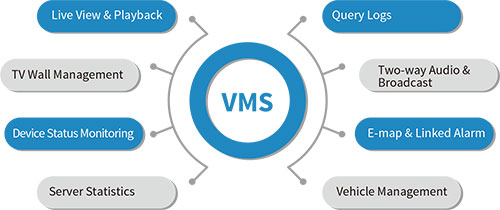

Complete CCTV Functions

UNV VMS is a reliable and easy-to-use management platform. Live view/playback, TV wall management, and user role management are all available on VMS client.

User Role Management

In order to meet the different access demands in different departments, UNV VMS can build up a credential system for every departments, such as casino management, public security, IT department, operation department and so on, which greatly improves efficiency.

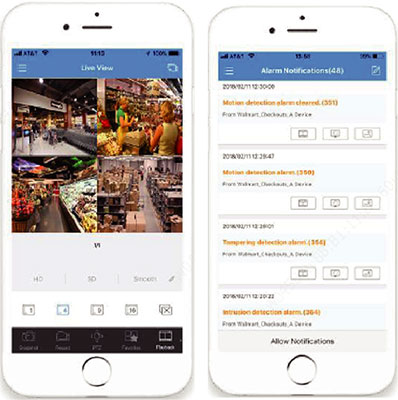

Remote Application

Casino managers can check live view, playback and alarm notifications at anytime and anywhere through UNV’s APP EZView. It helps casino managers to work easier with higher efficiency.

Watermark for Data Safety

Video recordings can be watermarked with customized content to prevent video recordings from unauthorized editing, ensures creditable video record.

Quickly Locate the Incidence

User-friendly Interface

UNV VMS is an easy-to-use management platform designed for CCTV system. Its flexible and feature-rich interfaces help security guards easier and more efficiently verify alarms and take actions.

Instant Playback

Playback with one click, play video of the last 5 minutes instantly.

Digital Zoom

UNV high-definition cameras support digital zoom function which is ideal for gambling zone, which can provide users with more details.

Video Track

When the object is captured by multiple cameras, multiple windows can be displayed on one screen once video track function is activated. Click one of the cameras in the E-map, the live views of that camera and cameras nearby are displayed, helping to locate the moving object.

Video Frame Extraction

Video can be divided into several parts with the same time frame. The first frame of each part would be displayed automatically on the screen, forming a group of pictures to help security guards locate the object quickly.

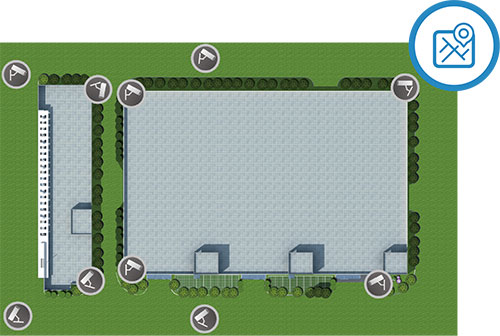

E-Map

VMS client supports to show alarms on E-maps and links live view on the video wall. It enables security guards to faster locate alarming area, which significantly shortens their reaction time.

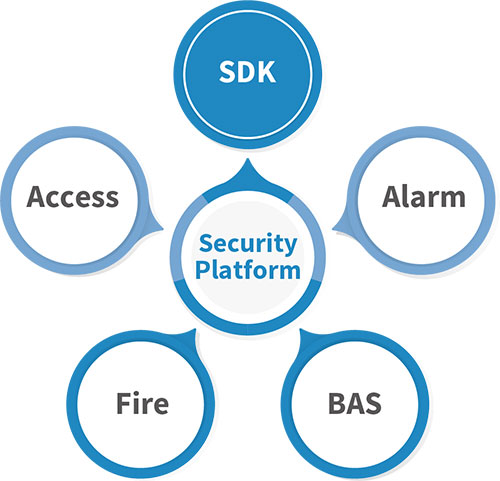

Not Only VMS

Uniview provides a comprehensive security platform which can integrate with other security subsystems such as access control system, alarm system, etc. And UNV management platform also provides interface for other systems to obtain live view, records and other functions through SDK.
