OEA-EL12

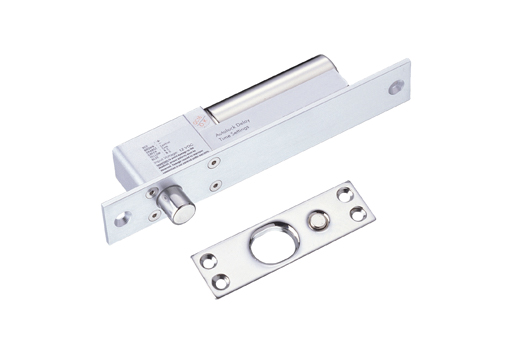

Electric Bolt Lock

Ultra-low power consumption design, more durable and environmentally friendly.

MOV surge protection.

High-strength aluminum alloy lock body, stainless steel bolt.

Ultra-low temperature design, more secure and durable.

500,000 power-on aging tests.

Door status feedback.

Come acquistare
ParameterDescription
Operation modeFailsafe
Operating environmentOperating temperature: -30°C to +60°C, operating humidity≤95%
Power supplyDC12V±10%
Operating current110mA
Signal output modeSwitch
Delayed door opening0/3/6/9s
Lock body dimensions (L×W×D)(mm)205×35×42
Lock strike dimensions(L×W×D)(mm)87×24×1.5
MaterialAluminum alloy
Weight0.72kg
Door supportWooden door, glass door, metal door, etc.
AttestationCE/FCC/ROHS
