Stability: Linux OS, 1+1 hot standby for master server, and N+M protection for storage server
Flexible deployment: support distributed and hierarchical network structure
Compatible and open: connection of third-party IP cameras with standard ONVIF and RTSP, integration with alarm control and access control; SDK for integration with other systems
Powerful connection: up to 2,000 devices or 10,000 channels by single server, up to 30,000 channels in distributed or hierarchical network structure
Unified management: IPC, NVR, decoder, network keyboard, cloud device, alarm control panel and door access controller
Reliable and cost-effective storage with IP SAN
Multiple ways to access: Web client for configuration and management, Software client for daily monitoring, mobile client (iOS and Android) for access anytime, anywhere
Rich functionality: live view, playback, sequence, video wall, GIS map, two-way audio and broadcast, people counting, real-time alarm and alarm management, user and permission management
VCA support: receive VCA alarms, configure alarm-triggered actions, and real-time people counting and statistics report
Secure protection: HTTPS, 802.1x authentication, ARP protection, secure password policy, and IP address filtering
Reliability: network fault tolerance, multi-IP configuration, load balancing, Automatic Network Replenishment (ANR)
Operation and maintenance: Provide a comprehensive management dashboard, server status, device/channel online/offline status, HDD status, online users, bandwidth usage, packet loss rate, log query

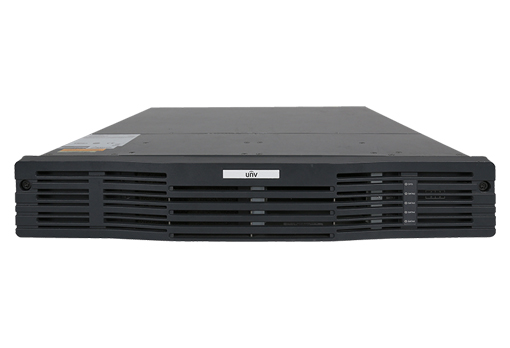

Model | VMS-B800-A |
Video management | |
Number of connected cameras per server | Up to 2,000 devices or 10,000 channels by single server Up to 30,000 channels in distributed or hierarchical network structure |
Device management | IPC, NVR, decoder, network keyboard, cloud devices, alarm control panel and door access controller |
Bandwidth of video input per server | 1024Mbps |
Bandwidth of video output per server | 1024Mbps |
User management | |
Number of online users | 1000 |
Numbers of roles per user | 16 |
Play control | |
1 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 / 13 / 16 / 17 / 25 / 32 / 36 / 64 window display Corridor format Up to 3 auxiliary monitors | |
Playback | |
Play NVR recordings Synchronous playback up to 16 channels on single client Instant playback (five minutes and thirty seconds ago) | |
Data Info | |
Alarm Records | 200,000 |
Operation logs | 200,000 |
Alarm | |
Alarm trigger | System alarm, device alarm, video channel alarm, VCA alarm, alarm control panel, door access controller, external alarm |
Alarm reaction | Recording, email, live view, PTZ preset, alarm output, video wall |
Interface | |
Network | 3 RJ-45 ports (10/100/1000Mbps) |
USB | 4×USB |
HDMI | 1×HDMI |
VGA | 1×VGA |
Serial | 1×RS232 (RJ45), 1xRS-485 (RJ45) |
Expansion | 1×power module 1×NIC card |
Others | |
Main processor | Intel(R) CPU |
Hard disk | 1×2T |
Memory | 16GB DDR4 |
Power supply | 100-240V AC, with power button |
Power consumption | ≤ 150 W |
Operating temperature | 0°C to 40°C (32°F to 104°F) Recommended: 10°C to 35°C (50°F to 95°F) |
Operating humidity | 20%-80% RH (non-condensing) |
Weight | ≤ 14.0 Kg |
Dimensions (D×W×H) | 482 mm × 551 mm × 87 mm (19"x21.7"x3.4") 2U height, mountable in a standard 19" rack |
