Support Ultra 265/H.265/H.264 video formats
8-channel input
Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
Support 1-ch HDMI, 1-ch VGA
HDMI and VGA simultaneous output
Up to 6MP resolution recording
1 SATA HDD up to 6 TB
Support cloud upgrade

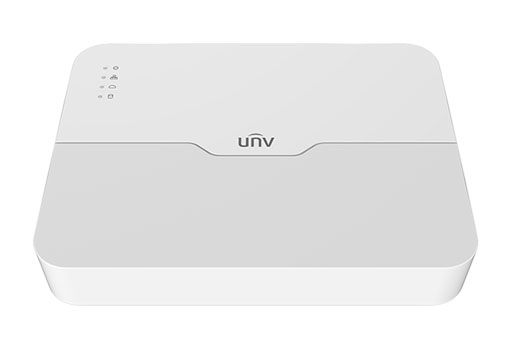

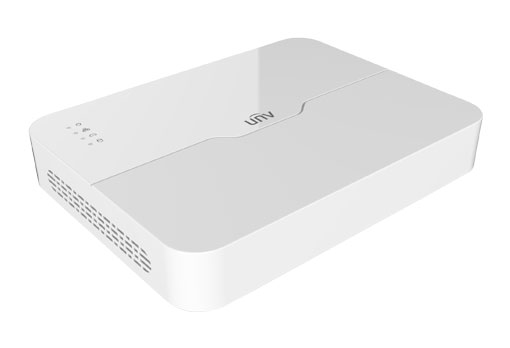

Model | NVR301-08LS2-P8 |
Video/Audio Input | |
IP Video Input | 8-ch |
Network | |
Incoming Bandwidth | 50Mbps |
Outgoing Bandwidth | 40Mbps |
Remote Users | 128 |
Protocols | P2P, UPnP, NTP, DHCP, PPPoE |
Video/Audio Output | |
HDMI/VGA Output | HDMI: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
Recording Resolution | 6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
Synchronous Playback | 8-ch |
Corridor Mode Screen | 3/4/5/7/9 |
Decoding | |
Decoding format | Ultra 265/H.265/H.264 |
Liveview/Playback | 6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
Capability | 1 x 6MP@20,1 x 5MP@30, 2 x 4MP@25, 2 x 3MP@30,4 x 1080p@25, 8 x 960p@25,8 x 720p@30 |
Hard Disk | |
SATA | 1 SATA interface |
Capacity | up to 6TB for each disk |
External Interface | |
Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
USB Interface | Rear panel: 2 x USB2.0 |
Supported Standard | IEEE 802.3at, IEEE 802.3af |
External Interface | |
Interface | 8 RJ45 10M/100M self-adaptive Ethernet Interface |
Max Power | Max 30W for single port Max 75W in total |
Supported Standard | IEEE 802.3at, IEEE 802.3af |
General | |
Power Supply | 52V DC Power Consumption: ≤9 W (without HDD) |
Working Environment | -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) |
Dimensions (W×D×H) | 270mm × 204mm × 45mm (10.6"×8.1"×1.6") |
Weight (without HDD) | 0.8kg (1.76 lb) |
