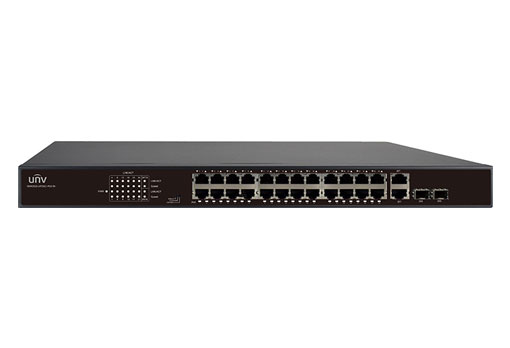

NSW2010-24T2GC-POE-IN - Uniview - Leader of AIoT Solution

Multiple working modes to address your business needs:Normal, Secure and Surveillance

Support port traffic control

Support for secure mode, all downlink ports can communicate only with uplink ports

Up to 250m transmission distance on surveillance mode

Support buffer optimization

All metal housing, safe and reliable

Model	NSW2010-6T-POE-IN	NSW2010-10T-POE-IN	NSW2010-16T2GC-POE-IN	NSW2010-24T2GC-POE-IN
Ports	6×100Mbps network ports (RJ45),including 4 PoE ports	10×100Mbps network ports (RJ45),including 8 PoE ports	16×100Mbps PoE ports (RJ45)+2×1000Mbps Combo ports	24×100Mbps PoE ports (RJ45)+2×1000Mbps Combo ports
Standards	IEEE802.3,IEEE802.3u,IEEE802.3az,IEEE802.3x, IEEE802.3af,IEEE802.3at		IEEE802.3,IEEE802.3u,IEEE802.3z,IEEE802.3ab, IEEE802.3x,IEEE802.3af,IEEE802.3at,IEEE802.3az
Switching capacity	1.2Gbps	2Gbps	7.2Gbps	8.8Gbps
Forwarding performance	0.90Mpps	1.49Mpps	5.36Mpps	6.55Mpps
Packet Buffer	768Kbit	1.625Mbit	4M bit	4Mbit
MAC	2K	4K	16K	16K
Dimensions (W×D×H)	160mm x 93mm x 32mm (6.3"×3.7"×1.3")	220mm x 150mm x 44mm(8.7"×5.9"×1.7")	440mm x 207mm x 45mm(17.3"×8.1"×1.8")	440mm x 207mm x 45mm(17.3"×8.1"×1.8")
Weight	<0.6kg	<1.22kg	<4.2kg	<4.2kg
Power supply	AC: 100-240V, 50/60Hz
PoE	802.3at/af
Max. PoE Power	Max capacity: 65W Max capacity for single port: 30W	Max capacity: 120W Max capacity for single port: 30W	Max capacity: 250W Max capacity for single port: 30W	Max capacity: 370W Max capacity for single port: 30W
Cooling Fans	0	0	2	2
Mean Time Between Failure (MTBF)	>50000 hours
Ambient temperature	0°C-45°C (32°F-113°F)
Operating humidity	10%～90% (noncondensing)
Storage humidity	5%～90% (noncondensing)
Indicator	PWR: Steady on: AC input is normal Off: No AC input
	PoE: Off: No PoE power supply Steady on: PoE power supply is normal Flashing: PoE power supply is abnormal
	LINK/ACT: Off: No link Steady: Linked at 10/100Mbps Flashing: Transmitting data
	Speed: Off: Linked at 10/100Mbps On: Linked at 1000Mbps
Working Mode	Default(Normal mode) : All ports can communicate with each other. EXTEND(Surveillance mode): Transmission distance up to 250 meters.		Default(Normal mode) : All ports can communicate with each other. VLAN(Secure mode): Downlink ports can communicate only with uplink ports. EXTEND(Surveillance mode): Transmission distance up to 250 meters.

Datasheet of NSW2010 Series Ethernet Switches
