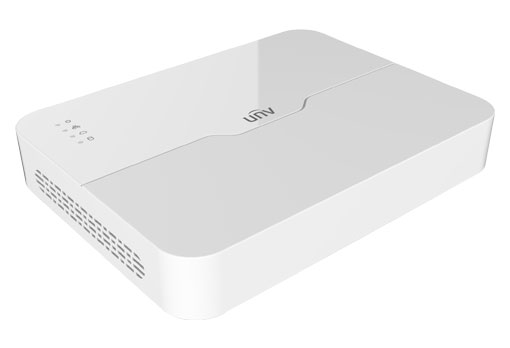

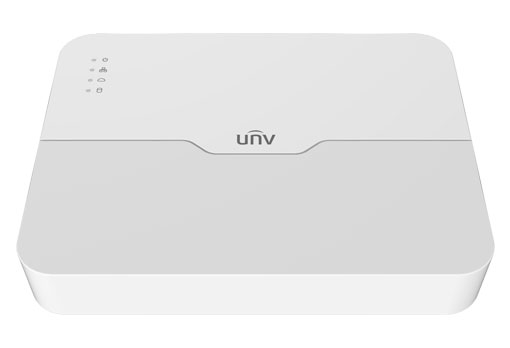

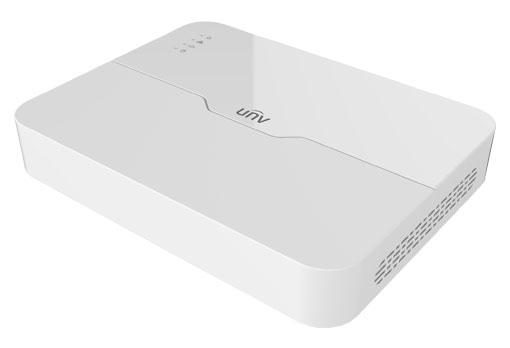

NVR301-LS3-P8 - Uniview - Leader of AIoT Solution

Support Ultra 265/H.265/H.264 video formats

4/8/16‑channel input

Plug & Play with 4/8 independent PoE network interfaces

Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols

Support 1‑ch HDMI, 1‑ch VGA, HDMI at up to 4K(3840x2160) resolution

HDMI and VGA simultaneous output

Up to 4K resolution recording

Support cloud upgrade

Decoding	Description
DecodingFormat	Ultra 265, H.265, H.264
DecodingCapability	NVR301‑04LS3‑P4:1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25 NVR301‑16LS3‑P8:1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 6 x 1080P@30, 8 x 720P@30, 16 x D1@25 NVR301‑08LS3‑P8:1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 6 x 1080P@30, 8 x 720P@30
AudioCompression	G.711A, G.711U
Network	Description
IncomingBandwidth	64Mbps
OutgoingBandwidth	48Mbps
RemoteUsers	128
Protocols	TCP/IP;P2P;UPnP;NTP;DHCP;PPPoE;HTTP;HTTPS;DNS;DDNS;SMTP;RTSP
Browser(Plugin)	Windows:IE(IE10/11), Firefox (version 52.0 and above), Chrome(version 45 and above), Edge(version 79 and above)
Video/AudioInput	Description
IPVideoInput	NVR301‑04LS3‑P4:4‑ch NVR301‑16LS3‑P8:16‑ch NVR301‑08LS3‑P8:8‑ch
Video/AudioOutput	Description
HDMIOutput	HDMI:4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGAOutput	VGA:1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
RCAAudioOutput	1‑ch
LiveviewDisplay	NVR301‑04LS3‑P4:1/4 NVR301‑16LS3‑P8:1/4/6/8/9/16 NVR301‑08LS3‑P8:1/4/6/8/9
CorridorModeScreen	NVR301‑04LS3‑P4:3/4 NVR301‑16LS3‑P8:3/4/5/7/9/10/12/16 NVR301‑08LS3‑P8:3/4/5/7/9
Snapshot	Description
FTP/Schedule/EventSnapshot	1‑ch snapshot, up to D1 resolution
Recording	Description
RecordingResolution	8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF
SynchronousPlaybackinLocal	NVR301‑04LS3‑P4:4‑ch NVR301‑16LS3‑P8:16‑ch NVR301‑08LS3‑P8:8‑ch
Smart	Description
VCADetectionbyIPC	Face Detection;SIP(Intrusion Detection, Cross Line Detection, Enter Area, Leave Area);Ultra Motion Detection(UMD)
VCASearch	Behavior Search
SmartbyIPC	Total 4‑ch(Face Detection, SIP, UMD)
Alarm	Description
GeneralAlarm	Auto Tracking;Motion Detection;Tampering;Human Body Detection;Video Loss;Alarm Input;Audio Detection
AlertAlarm	IP Conflict;Network Disconnected;Disk Offline;Disk Abnormal;Illegal Access;Hard Disk Space Low;Hard Disk Full;Recording/Snapshot Abnormal
GUILanguage	Description
GUILanguage	21 languages: Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian
HardDisk	Description
SATA	1 SATA Interface
Capacity	Up to 10TB for each HDD(The maximum HDD capacity varies with environment temperature and hard disk size)
ExternalInterface	Description
NetworkInterface	1 RJ45 10M/100M self‑adaptive Ethernet Interface
USB	Rear panel: 2 x USB2.0
RS485	N/A
RS232	N/A
AlarmIn	N/A
AlarmOut	N/A
PowerSupply	NVR301‑04LS3‑P4:DC 48V/1.35A NVR301‑16LS3‑P8/NVR301‑08LS3‑P8:DC 52V/1.8A
PoE	Description
Interface	NVR301‑04LS3‑P4:4 RJ45 10M/100M self‑adaptive Ethernet Interface NVR301‑16LS3‑P8/NVR301‑08LS3‑P8:8 RJ45 10M/100M self‑adaptive Ethernet Interface
MaxPower	NVR301‑04LS3‑P4:Max 30W for single port, Max 54W in total NVR301‑16LS3‑P8/NVR301‑08LS3‑P8:Max 30W for single port, Max 75W in total
SupportedStandard	IEEE 802.3at, IEEE 802.3af
WorkingEnvironment	Description
WorkingTemperature	‑10 °C ~ 55 °C (14 °F ~ 131 °F)
WorkingHumidity	≤ 90% RH (non‑condensing)
PowerConsumption(withoutHDD)	≤ 9W
Dimensions	Description
Weight(withoutHDD)	NVR301‑04LS3‑P4:≤ 0.6Kg (1.32lb) NVR301‑16LS3‑P8/NVR301‑08LS3‑P8:≤ 0.8Kg (1.76lb)
Dimensions	NVR301‑04LS3‑P4:205mm × 205mm × 46mm (8.1"×8.1"×1.8") NVR301‑16LS3‑P8/NVR301‑08LS3‑P8:270mm × 205mm × 46mm (10.6"×8.1"×1.8")
Certification	Description
Certification	CE;FCC;UL;RoHS;WEEE
CE	EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 55035
FCC	Part15 Subpart B
