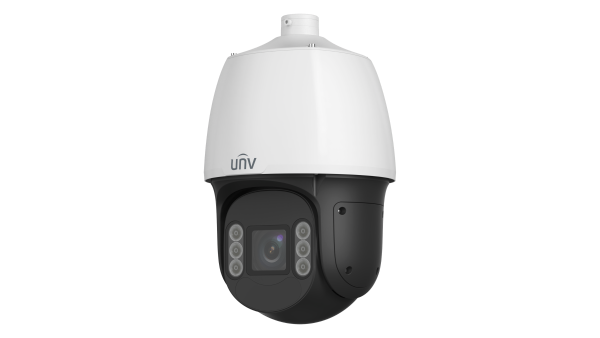

| IPC6628SR-X25E-VH2 | ||||||||
| Camera | ||||||||
| Max Resolution | 8 MP | |||||||
| Sensor | 1/1.8" CMOS | |||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| Shutter | Auto/Manual, 1 to 1/100000 s | |||||||
| WDR | 120 dB | |||||||
| S/N | > 56 dB | |||||||
| Min. Illumination | Color: 0.003 Lux (F1.5, AGC ON), B/W: 0.002 Lux (F1.5, AGC ON), 0 Lux with Light | |||||||
| Lens | ||||||||
| Focal Length | 6 to 150 mm | |||||||
| Digital Zoom | 8X | |||||||
| Optical Zoom | 25X | |||||||
| Iris | F1.5 to F3.4 | |||||||
| Field of View (H) | 56.51° to 2.93° | |||||||
| Field of View (V) | 33.64° to 1.65° | |||||||
| Field of View (D) | 69.50° to 3.45° | |||||||
| DORI | ||||||||
| DORI Distance (Detect) | 143.1 m to 3116.3 m (469.5 ft. to 10223.9 ft) | |||||||
| DORI Distance (Observe) | 57.2 m to 1246.5 m (187.8 ft. to 4089.6 ft) | |||||||
| DORI Distance (Recognize) | 28.6 m to 623.3 m (93.9 ft. to 2044.8 ft) | |||||||
| DORI Distance (Identify) | 14.3 m to 311.6 m (46.9 ft. to 1022.4 ft) | |||||||
| Video | ||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
| Frame Rate | Main Stream Max: 8 MP (3840 × 2160), 30 fps Main Stream Default: 8 MP (3840 × 2160), 25 fps Sub Stream Max: 1080P (1920 × 1080), 30 fps Third Stream Max: D1 (720 × 576), 30 fps Fourth Stream Max: D1 (720 × 576), 30 fps Fifth Stream Max: D1 (720 × 576), 30 fps | |||||||
| Video Bit Rate | 128 Kbps to 16 Mbps | |||||||
| U-code | Support | |||||||
| Privacy Mask | 24 areas, up to 8 areas per scene | |||||||
| ROI | Up to 8 areas | |||||||
| Video Stream | Five streams | |||||||
| OSD | Up to 10 OSDs | |||||||
| Frame Rate Recommendation | 3840 × 2160@30 fps + 1080P@30 fps + D1@30 fps + D1@30 fps + D1@30 fps 3072 × 2048@30 fps + 1080P@30 fps + D1@30 fps + D1@30 fps + D1@30 fps 2688 × 1520@30 fps + 1080P@30 fps + D1@30 fps + D1@30 fps + D1@30 fps 2560 × 1440@30 fps + 1080P@30 fps + D1@30 fps + D1@30 fps + D1@30 fps 1080P@30 fps + 1080P@30 fps + D1@30fp + D1@30fp + D1@30fp | |||||||
| Events | ||||||||
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output | |||||||
| Audio | ||||||||
| Audio Compression | G.711U, G.711A | |||||||
| Two-way Audio | Support | |||||||
| Suppression | Support | |||||||
| Sampling Rate | 8 kHz, 16 kHz | |||||||
| Storage | ||||||||
| Edge Storage | MicroSD, up to 512 GB | |||||||
| Network Storage | NAS (NFS) | |||||||
| Network | ||||||||
| Protocols | IGMP, SMTP, IPv6, ICMP, ARP, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, UPnP, HTTP, 802.1x, SNMP, QoS, SSL/TLS, SSH, IPv4, RTP, RTCP, RTMP, HTTPS | |||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile M), SDK, API | |||||||
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | |||||||
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF, TLS 1.3 | |||||||
| Client | EZStation, UNV-Link, UNV-Link Pro | |||||||
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ | |||||||
| PTZ | ||||||||
| Preset Image Freeze | Support | |||||||
| Patrol Stay Time | 15 s to 1800 s | |||||||
| Home Position | Support | |||||||
| Number of Presets | 1024 | |||||||
| Pan Range | 360° (endless) | |||||||
| Pan Speed | 0.1°/s to 288°/s | |||||||
| Tilt Range | -15° to 90° (auto flip) | |||||||
| Tilt Speed | 0.1°/s to 288°/s | |||||||
| Image | ||||||||
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 | |||||||
| Digital Noise Reduction | 2D/3D DNR | |||||||
| BLC | Support | |||||||
| Flip | Normal, Flip vertical, Flip horizontal, 180° | |||||||
| HLC | Support | |||||||
| Defog | Digital defog | |||||||
| Low Illumination Characteristics | ColorHunter with Wise-ISP | |||||||
| Image Stabilization | EIS (Gyroscope) | |||||||
| Interface | ||||||||
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] | |||||||
| Alarm I/O | 2/1 | |||||||
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet | |||||||
| Serial Port | 1 × RS485 | |||||||
| Intelligent | ||||||||
| Exception Detection | Object removed, Object Left Behind | |||||||
| Auto Tracking | UNV Large Model | |||||||
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | |||||||
| People Counting | Support people flow counting and crowd density detection | |||||||
| Recognition | ||||||||
| Illuminator | ||||||||
| IR On/Off Control | Auto/Manual | |||||||
| Illumination Distance (IR) | 200 m (656.2 ft) | |||||||
| Certification | ||||||||
| Safety | UL (UL 62368-1) CUL (CAN/CSA C22.2 No. 62368-1) CE-LVD (EN IEC 62368-1) | |||||||
| EMC | CE-EMC (EN 55032; EN IEC 61000-3-2; EN 61000-3-3; EN 50130) FCC SDoC (47 CFR Part 15; Subpart B) | |||||||
| Environment | CE-ROHS (2011/65/EU; (EU) 2015/863) WEEE (2012/19/EU) | |||||||
| Protection | IP67 (IEC 60529) ; IK10 (IEC62262; Anti-Vandalism Except for the Front Window) | |||||||
| General | ||||||||
| Power Interface | Wires with cold-pressed terminal | |||||||
| Dimensions | Ø226.7 mm × 390.2 mm (Ø8.9" × 15.4") (Ø × H) | |||||||
| Weight | 5.44 kg (11.99 lb) | |||||||
| Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
| Surge Protection | 6 KV | |||||||
| Working Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
| Reset Button | Support | |||||||
| Power | DC 24 V±25%, AC 24 V±25%, PoE (IEEE 802.3at) | |||||||
| Power Consumption | Max. 20.9 W | |||||||
| Web Client Language | 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak | |||||||
| Configurable | ||||||||
| P/N | Support | |||||||
| Compliance | ||||||||
| NDAA Compliant | Support | |||||||
