IPC325SS-ADF28(40)K-I1

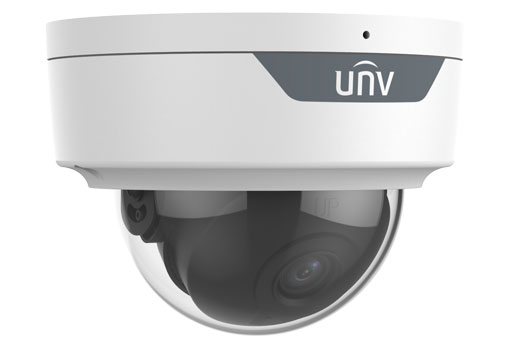

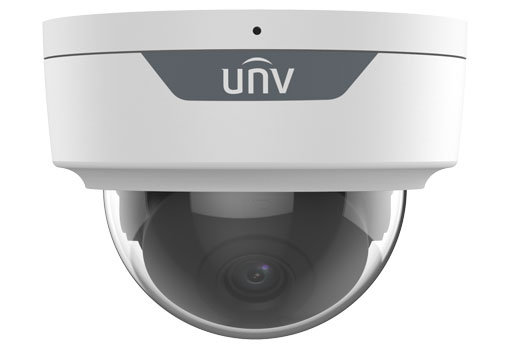

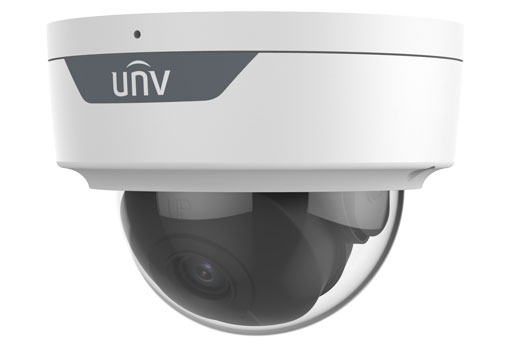

5MP HD Intelligent LightHunter IR Fixed Dome Network Camera

High quality image with 5MP, 1/2.7"CMOS sensor

5MP (2880*1620)@ 30/25(default)fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps

Ultra 265, H.265, H.264, MJPEG

Intelligent perimeter protection, include cross line, intrusion, enter area, leave area detection

Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non‑motor vehicle

Intelligent

Intelligent People Flow Counting and Crowd Density Monitoring

Smart intrusion prevention with Color retrieval

Auto Scene Match (ASM)（Only WDR）

LightHunter technology ensures ultra‑high image quality in low illumination environment

130dB true WDR technology enables clear image in strong light scene

Support 9:16 Corridor Mode

Alarm:1 in/1 out, Audio: 1 in/1 out

Smart IR, up to 40m (131ft) IR distance

Supports 512 G Micro SD card

IK10 vandal resistant and IP67 protection

Specification
Accessories
Download
How to buy
CameraDescription
Max Resolution5MP
Sensor1/2.7" CMOS
Min. IlluminationColour: 0.002 lux (F1.6, AGC ON)
0 lux with IR on
Day/NightIR‑cut filter with auto switch (ICR)
ShutterAuto/Manual, 1 ~ 1/100000s
Adjustment AnglePan: 0° ~ 352°, Tilt: 0° ~ 70°, Rotate: 0° ~ 350°
S/N>52dB
WDR130dB
LensDescription
Focal LengthIPC325SS‑ADF28K‑I1:2.8 mm IPC325SS‑ADF40K‑I1:4.0 mm
Iris TypeFixed
IrisF1.6
Field of View (H)IPC325SS‑ADF28K‑I1:110.0° IPC325SS‑ADF40K‑I1:91.2°
Field of View (V)IPC325SS‑ADF28K‑I1:58.7° IPC325SS‑ADF40K‑I1:43.7°
Field of View (D)IPC325SS‑ADF28K‑I1:130° IPC325SS‑ADF40K‑I1:95.3°
DORIDescription
DORI Distance (Lens)IPC325SS‑ADF28K‑I1:2.8mm IPC325SS‑ADF40K‑I1:4.0mm
DORI Distance (Detect)IPC325SS‑ADF28K‑I1:63.0m(206.7ft) IPC325SS‑ADF40K‑I1:90.0m(295.3ft)
DORI Distance (Observe)IPC325SS‑ADF28K‑I1:25.2m(82.7ft) IPC325SS‑ADF40K‑I1:36.0m(118.1ft)
DORI Distance (Recognize)IPC325SS‑ADF28K‑I1:12.6m(41.3ft) IPC325SS‑ADF40K‑I1:18.0m(59.1ft)
DORI Distance (Identify)IPC325SS‑ADF28K‑I1:6.3m(20.7ft) IPC325SS‑ADF40K‑I1:9.0m(29.5ft)
IlluminatorDescription
Supplemental LightIR
Illumination Distance (IR)40 m (131.2 ft)
IR On/Off ControlAuto/Manual
Wavelength850 nm
VideoDescription
Video CompressionUltra 265; H.265; H.264; MJPEG
H.264 Code ProfileBaseline profile, Main profile, High profile
Frame RateMain Stream:5MP (2880*1620), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps;
Sub Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps
Video Bit Rate128 Kbps ~ 16 Mbps
U-codeSupport
OSDUp to 8 OSDs
Privacy MaskUp to 4 areas
ROISupport
Video StreamTriple Streams
ImageDescription
Auto Scene Match (ASM)Support (Only WDR)
White BalanceAuto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2
Digital Noise Reduction2D/3D DNR
Smart IRSupport
FlipNormal; Flip Vertical; Flip Horizontal; 180°; 90°Clockwise; 90°Anti‑clockwise
DewarpingN/A
HLCSupport
BLCSupport
DefogDigital Defog
IntelligentDescription
Smart Intrusion PreventionCross line detection, Intrusion detection, Enter area detection, Leave area detection (support false alarm filtering and the classification of human, non‑motor vehicle and vehicle)
Statistical AnalysisN/A
Attribute CollectionSIP with color retrieval
EventsDescription
Basic DetectionMotion Detection; Ultra Motion Detection; Tampering Alarm; Audio Detection
General FunctionWatermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication; HTTP Authentication; Alarm Input; Alarm Output
AudioDescription
Audio CompressionG.711U; G.711A
Audio Bitrate64 Kbps
Two-way AudioSupport
SuppressionSupport
Sampling Rate8 KHz
StorageDescription
Edge StorageMicro SD, up to 512 GB
Network StorageANR; NAS (NFS)
NetworkDescription
ProtocolsIPv4; IPv6; IGMP; ICMP; ARP; TCP; UDP; DHCP; PPPoE; RTP; RTSP; RTCP; RTMP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; 802.1x; SNMP; QoS; SSL/TLS; SSH
Compatible IntegrationONVIF (Profile S, Profile G, Profile T);
API; SDK
User/HostUp to 32 users. 3 user levels: administrator, common user and operator
SecurityPassword Protection; Strong Password; HTTPS Encryption; Export Operation Logs; Basic and Digest Authentication for RTSP; Digest Authentication for HTTP; TLS 1.2; WSSE and Digest Authentication for ONVIF
ClientUNV‑Link;  UNV‑Link Pro; EZStation
Web BrowserPlug‑in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above; Plug‑in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
InterfaceDescription
Audio I/O1 Input: impedance 35kΩ; amplitude 2V [p‑p]; 1 Output: impedance 600Ω; amplitude 2V [p‑p]
Alarm I/O1/1
Serial PortN/A
Built-in MicSupport
Built-in SpeakerN/A
WIFIN/A
Network1 x RJ45 10M/100M Base‑TX Ethernet
Video OutputN/A
CertificationDescription
EMCCE‑EMC (EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 50130)
FCC (FCC 47 CFR part15 B)
SafetyCE‑LVD (EN 62368‑1)
CB (IEC 62368‑1)
UL/CUL (UL 62368‑1, CAN/CSA C22.2 No. 62368‑1)
EnvironmentCE‑RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
ProtectionIP67 (IEC 60529)
IK10 (IEC 62262)
GeneralDescription
PowerDC 12V±25%, PoE (IEEE 802.3af)
Power InterfaceØ 5.5 mm coaxial power plug
DimensionsØ111 x 83mm (Ø4.4” x 3.3”) (Ø x H)
Weight0.42kg (0.93lb)
MaterialMetal
Working Environment‑40 °C ~ 60 °C (‑40 °F ~ 140 °F), Humidity: ≤95% RH (non‑condensing)
Booting Environment‑30 °C ~ 60 °C (‑22 °F ~ 140 °F), Humidity: ≤95% RH (non‑condensing)
Storage Environment‑30 °C ~ 60 °C (‑22 °F ~ 140 °F), Humidity: ≤95% RH (non‑condensing)
Surge Protection4KV
Reset ButtonSupport
Web Client Language20 Languages
Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese
