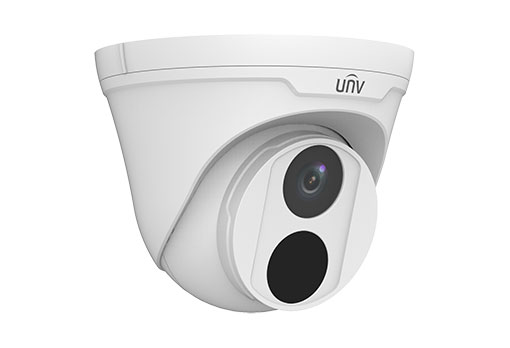

IPC3615LR3-PF28(40)-D 5MP Fixed Dome Network Camera - Uniview

Optics

Day/night functionality

Smart IR, up to 30 m (98 ft) IR distance

3D DNR (Digital Noise Reduction)

Compression

Ultra 265,H.265,H.264,MJPEG

ROI (Region of Interest)

Network

ONVIF Conformance

Structure

Support PoE power supply

Wide temperature range: -30°C to 60°C (-22°F to 140°F)

Wide voltage range of ±25%

IP67

3-Axis

	IPC3615LR3-PF28-D				IPC3615LR3-PF40-D
Camera
Sensor	1/2.7", 5.0 megapixel, progressive scan, CMOS
Lens	2.8mm@F2.0				4.0mm@F2.0
DORI Distance	Lens (mm)	Detect (m)		Observe (m)		Recognize (m)		Identify (m)
	2.8	42		16.8		8.4		4.2
	4.0	60		24		12		6
Angle of view (H)	105.3°				79.7°
Angle of View (V)	69.5°				51.8°
Angle of View (O)	136.9°				98.0°
Adjustment angle	Pan: 0° ~ 360°		Tilt: 0° ~ 80°				Rotate: 0° ~ 360°
Shutter	Auto/Manual, 1 ~ 1/100000s
Min. Illumination	Colour: 0.01Lux (F2.0, AGC ON) 0Lux with IR
Digital noise reduction	2D/3D DNR
Day/Night	IR-cut filter with auto switch (ICR)
S/N	>52dB
IR Range	Up to 30m (98ft) IR range
Wavelength	850nm
IR On/Off Control	Auto/Manual
Defog	Digital Defog
WDR	DWDR
Video
Max. Resolution	2592*1944
Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 code profile	Baseline profile, Main Profile
Frame Rate	Main Stream: 5MP (25921944), Max 20fps; Sub Stream:720P (1280720), Max 20fps
Video Bit Rate	128 Kbps~16 Mbps
OSD	Up to 4 OSDs
Privacy Mask	Up to 4 areas
ROI	Up to 2 areas
Motion Detection	Up to 4 areas
White Balance	Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction	2D/3D DNR
Smart IR	Support
Flip	Normal/Vertical/Horizontal/180°
Dewarping	NA
HLC	Supported
BLC	Supported
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS
Compatible Integration	ONVIF (Profile S, Profile T), API
Client	EZStation EZView EZLive
Web Browser	Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
	Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Interface
Network	10/100M Base-TX Ethernet
Certifications
Certifications	CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15
General
Power	DC 12V±25%,PoE (IEEE 802.3af)
	Power consumption: Max 4W
Dimensions (Ø x H)	Φ118 x 96mm (Φ4.6” x 3.8”)
Net Weight	0.35kg (0.77lb)
Material	Metal + Plastic
Working Environment	-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment	-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection	2KV
Ingress Protection	IP67

Datasheet of IPC3615LR3-PF28(40)-D
