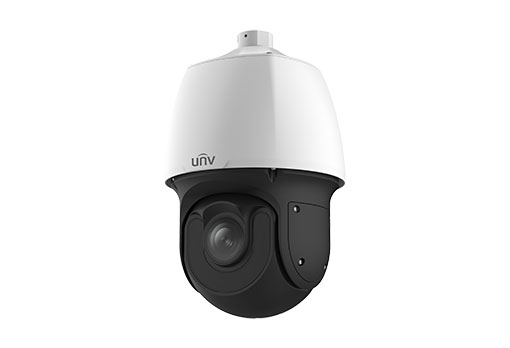

IPC6258SR-X22DUP - Uniview - Leader of AIoT Solution

Optics

22X Optical Zoom

Fifth-generation infrared technology, more than 200m (656ft) IR distance

IR anti-reflection window to increase the infrared transmittance

Optical glass window with higher light transmittance

Smart IR

EIS (Electronic Image Stabilization)

Compression

8 Megapixel image

Ultra 265,H.265, H.264, MJPEG

Triple streams

Customized OSD

Network

ONVIF Conformance

Structure

Innovative snow-removing functionality

Intelligent temperature control technology

More effective heat dissipation system

IP66

Camera	IPC6258SR-X22DUP
Sensor	1/1.8", progressive scan, 8megapixel, CMOS
Lens	6.5~ 143 mm (22x optical zoom) , AF automatic focusing and motorized zoom lens
DORI Distance	Lens	Detect(m)	Observe(m)	Recognize(m)	Identify(m)
	6.5mm	146.3	58.5	29.3	14.6
	143mm	3217.5	1287	643.5	321.8
Angle of View (H)	58.9°~3.4°
Angle of View (V)	35.2°~1.9°
Angle of View (O)	72.5°~4.1°
Shutter	Auto/Manual, shutter time: 1 ~ 1/100000 s
Minimum Illumination	Colour: 0.003 lux (F1.5,AGC ON) 0 lux with IR
Iris	Auto, F1.5 ~ F3.4
Day/Night	IR-cut filter with auto switch (ICR)
Digital noise reduction	2D/3D DNR
S/N	>56 dB
IR Range	UP to 200m (656ft)
Defog	Digital Defog
WDR	120dB
Video
Video Compression	Ultra 265,H.265, H.264, MJPEG
H.264 code profile	Baseline profile, Main Profile, High Profile
Frame Rate	Main Stream:8MP(3840 × 2160): Max.30fps, 2MP(1920×1080)@30fps； Sub Stream:2MP(1920×1080) : Max. 30fps； Third Stream: D1 (720×576): Max. 30fps
HLC	Supported
BLC	Supported
EIS	Supported
OSD	Up to 8 OSDs
Privacy Mask	Up to 24 areas
ROI	Up to 8 areas
Motion Detection	Up to 4 areas
Smart
General Function	Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression	G.711
Two-way Audio	Supported
Suppression	Supported
Sampling Rate	8 KHZ
Storage
Edge Storage	Micro SD, up to 256 GB
Network Storage	ANR
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP
Compatible Integration	ONVIF(Profile S, Profile G, Profile T),API
Pan & Tilt
Pan Range	360°
Pan Speed	0.1°/s ~ 200°/s
	Preset speed: 300°/s
Tilt Range	–15° ~ +90° (auto reverse)
Tilt Speed	0.1° ~200°/s
	Preset speed: 240°/s
Number of Presets	1024
Patrol	Preset patrol, route patrol, recorded patrol
Home Position	Supported
Interface
Audio I/O	Audio cable
	1 Input: impedance 35 kΩ; amplitude 2 V [p-p]
	1 Output: impedance 600 Ω; amplitude 2 V [p-p]
Alarm I/O	1 / 1
Network	1 RJ45 10M/100M Base-TX Ethernet
General
Power	24 V AC±25%, 24 V DC±25%, PoE(PSE Required)
	Power consumption: 60W
Dimensions (Ø x H)	Ø227x359.4 mm (Ø8.9” x 14.2”)
Weight	5.55 kg (12.24 lb)
Working Environment	–40°C ~ +70°C (-40°F ~ 158°F), Humidity: ≤95% RH(non-condensing)
Ingress Protection	IP66
Reset Button	Supported
