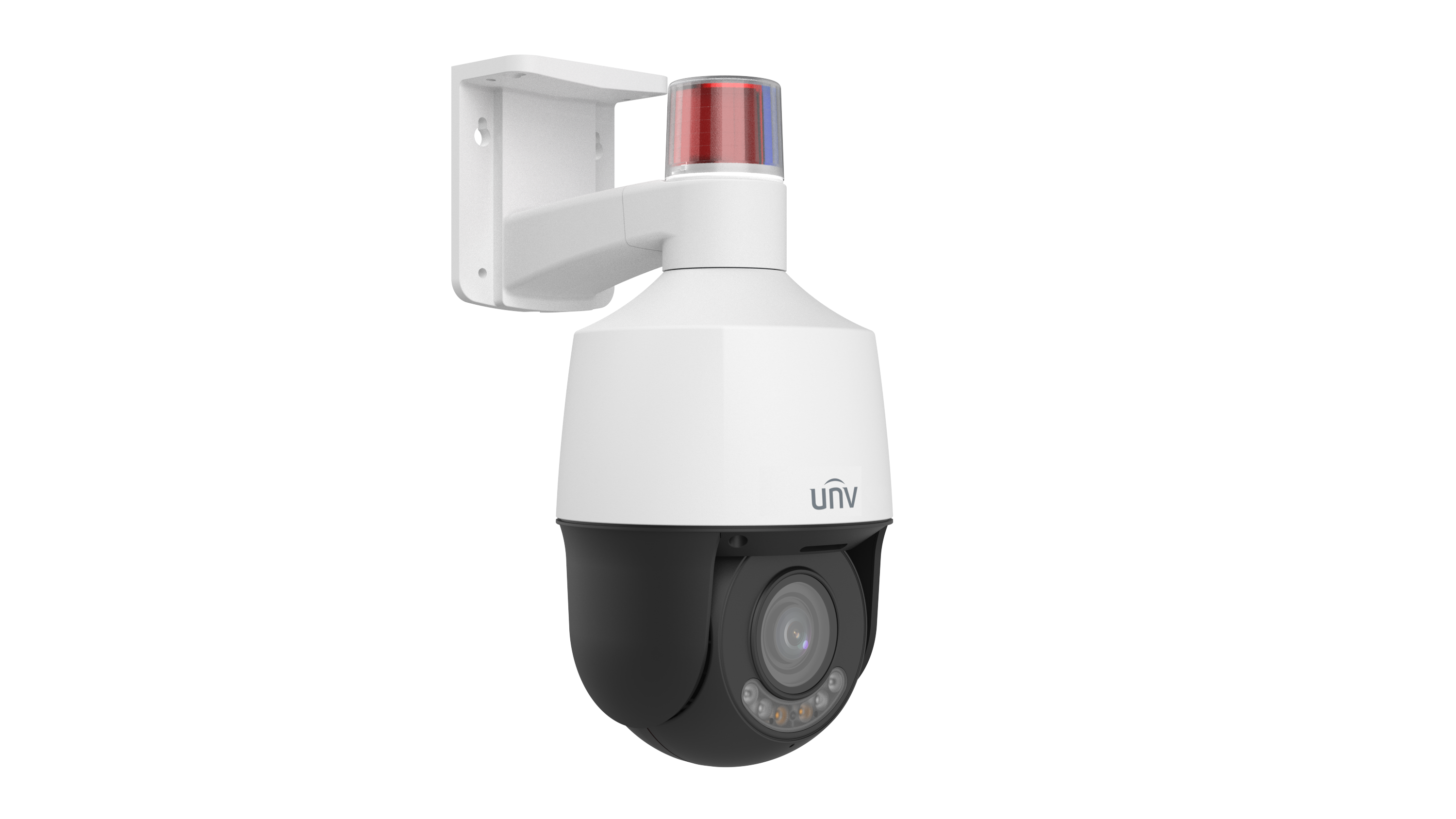

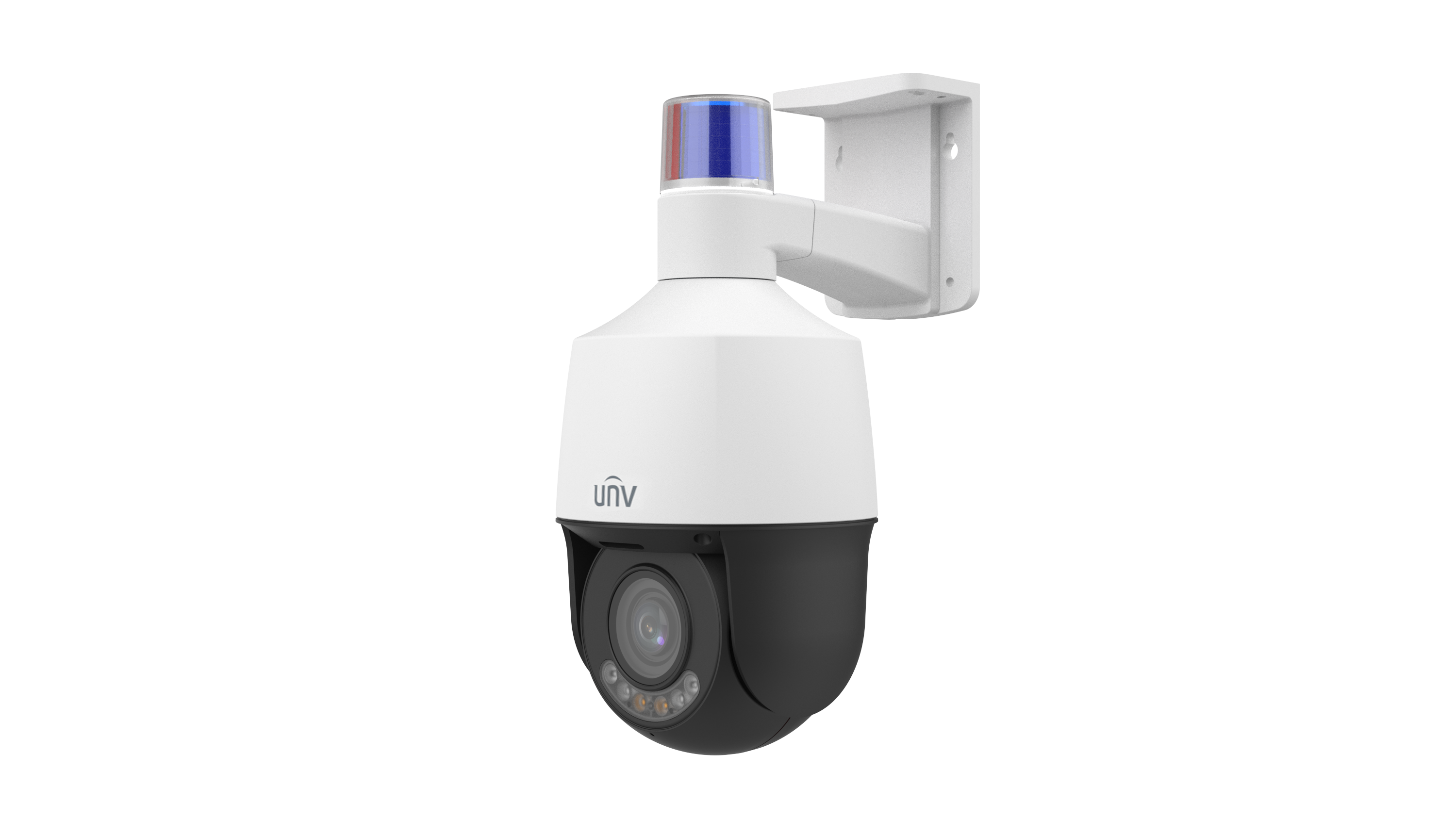

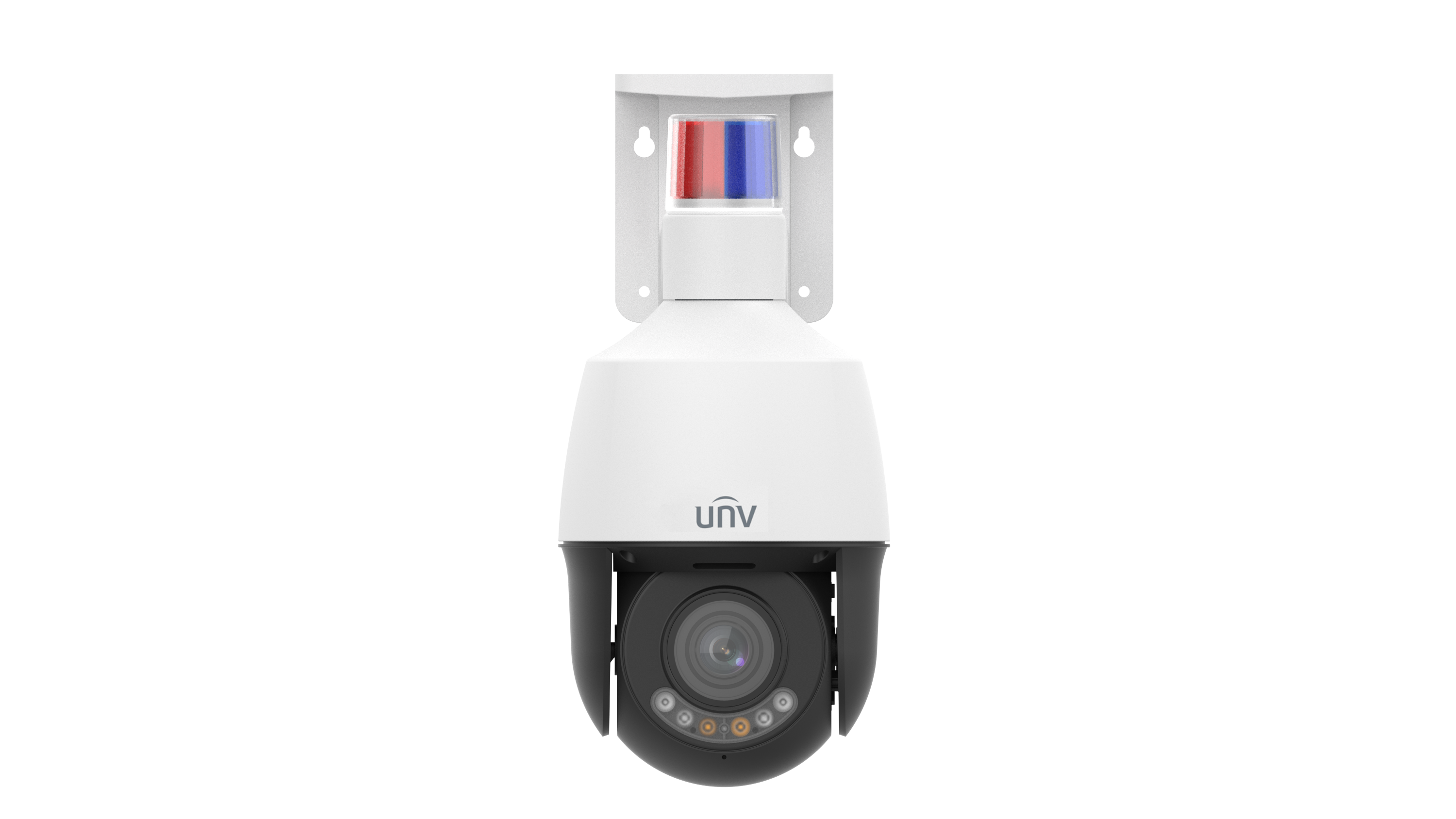

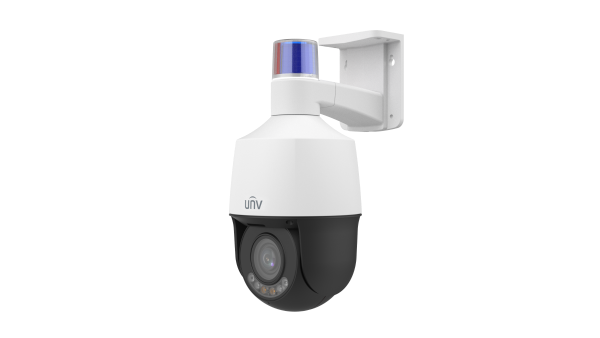

| IPC6315LFW-AX5C-VG1 |
Camera |
Max Resolution | 5 MP |
Sensor | 1/2.7" CMOS |
Min. Illumination | Colour:0.005lux (F1.6,AGC ON) 0 lux with IR |
Day/Night | IR-cut filter with auto switch (ICR) |
Shutter | Auto/Manual,1 to 1/100000 s |
WDR | 120 dB |
S/N | >56 dB |
Lens |
Focal Length | 2.7 to 13.5 mm |
Optical Zoom | 5X |
Iris | F1.6 |
Field of View (H) | 106.91°~33.55° |
Field of View (V) | 56.45°~18.99° |
Field of View (D) | 123.1°~42.1° |
DORI |
DORI Distance (Detect) | 72 m ~ 229.5 m (236.2 ft ~ 753 ft) |
DORI Distance (Observe) | 28.8 m ~ 91.8 m (94.5 ft ~ 301.2 ft) |
DORI Distance (Recognize) | 14.4 m ~ 45.9 m (47.2 ft ~ 150.6 ft) |
DORI Distance (Identify) | 7.2 m ~ 23 m (23.6 ft ~ 75.3 ft) |
Illuminator |
Illumination Distance (Warm Light) | 15 m (49.3 ft) |
Illumination Distance (IR) | 50 m (164.0 ft) |
Wavelength | 850 nm |
Light On/Off Control | Auto/Manual |
Video |
Privacy Mask | Up to 4 areas |
Video Compression | Ultra 265, H.265, H.264, MJPEG |
Frame Rate | Main Stream: 5MP (2880*1620), Max 30fps Sub Stream: 720P (1280*720), Max 30fps |
Video Bit Rate | 128 Kbps to 16 Mbps |
U-code | Support |
ROI | Support |
Video Stream | Dual Streams |
OSD | Up to 4 OSDs |
Image |
Defog | Digital Defog |
White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 |
Digital Noise Reduction | 2D/3D DNR |
Flip | Normal, Flip Vertical, Flip Horizontal, 180° |
HLC | Support |
BLC | Support |
Smart IR | Support |
Intelligent |
Auto Tracking | Support, target filtering: human only |
Smart Intrusion Prevention | Cross line detection, intrusion detection (support false alarm filtering and the classification of human and vehicle) |
Events |
Basic Detection | Motion Detection, Tampering Alarm, Audio Detection |
General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
Audio |
Audio Compression | G.711U, G.711A |
Audio Bitrate | 128 Kbps |
Two-way Audio | Support |
Suppression | Support |
Sampling Rate | 16KHZ |
Storage |
Edge Storage | Micro SD, up to 512 GB |
Network Storage | ANR, NAS (NFS) |
PTZ |
Pan Range | 0° ~ 345° |
Pan Speed | 1°/s~40°/s |
Tilt Range | -10° ~ 100° |
Tilt Speed | 1°/s~30°/s |
Number of Presets | 1024 |
Preset Patrol | 16 patrols, up to 64 presets for each patrol |
Patrol Stay Time | 120 s to 1800 s |
Home Position | Support |
Network |
Protocols | TLS1.3, SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS |
Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), SDK, API |
Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
Client | EZStation, UNV-Link, UNV-Link Pro |
Web Browser | Plug-in required live view: IE 10 and above,Chrome 45 and above,Firefox 52 and above,Edge 79 and above |
Interface |
Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] |
Alarm I/O | 1/1 |
Built-in Mic | Support |
Built-in Speaker | Support |
Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
Certification |
EMC | CE-EMC (EN 55032: 2015+A11: 2020+A1: 2020, EN 50130-4: 2011+A1: 2014, EN 61000-3-3: 2013+A1: 2019+A2: 2021, EN IEC 61000-3-2: 2019+A1: 2021) |
Safety | CE LVD (EN 62368-1: 2020+A11: 2020) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
Environment | CE-ROHS (2011/65/EU;(EU)2015/863) |
Protection | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
General |
Power | DC12V(±25%), PoE(IEEE 802.3at) |
Power Consumption | 18W |
Power Interface | Ø5.5 mm coaxial power plug |
Dimensions | 133 x 185 x 286 mm (Ø 5.2" x 7.3" x 11.3" ) (L x W x H) |
Weight | 788g |
Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
Surge Protection | 2 KV |
Reset Button | Support |
Web Client Language | 22 Languages Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak |
