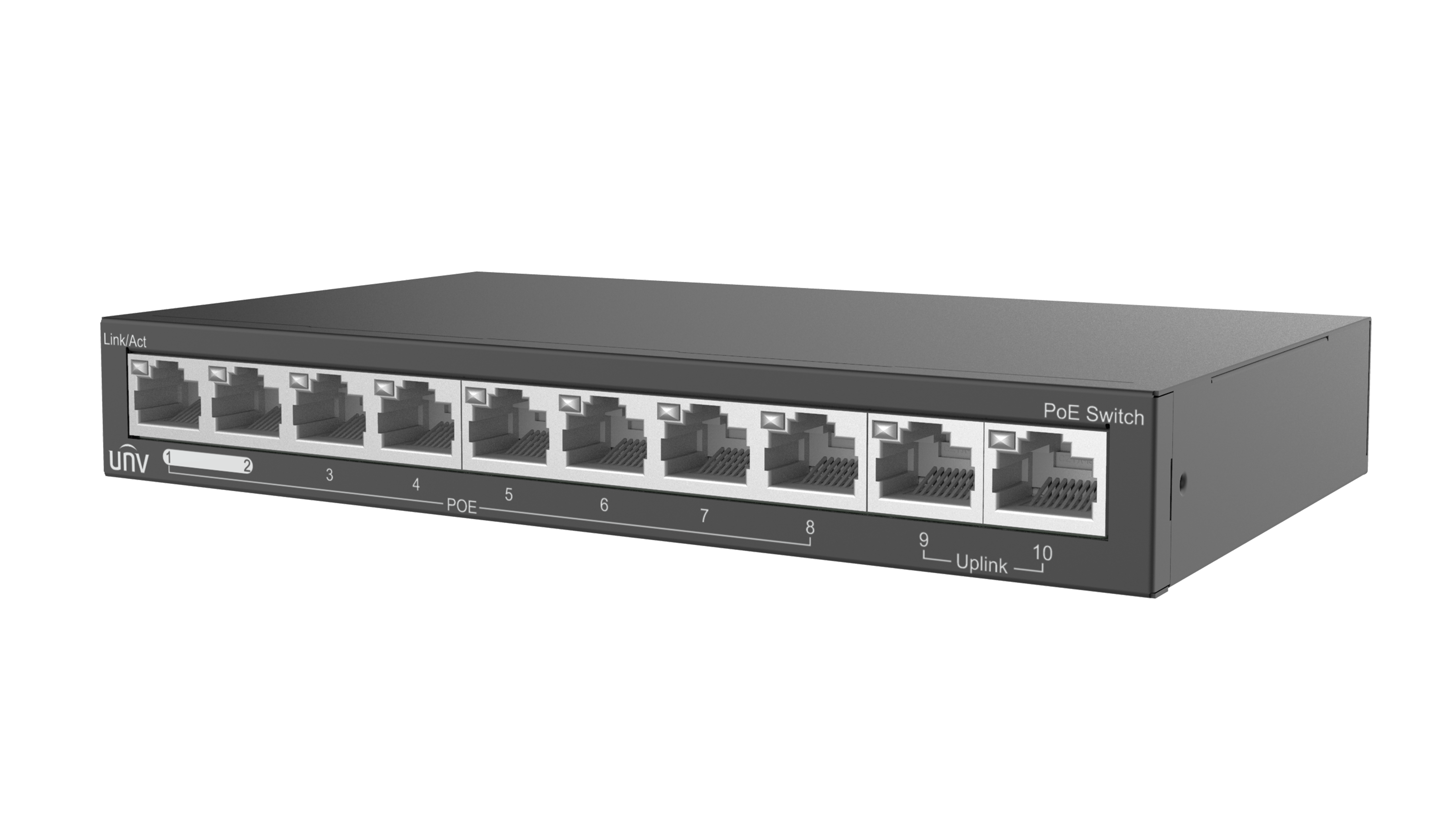

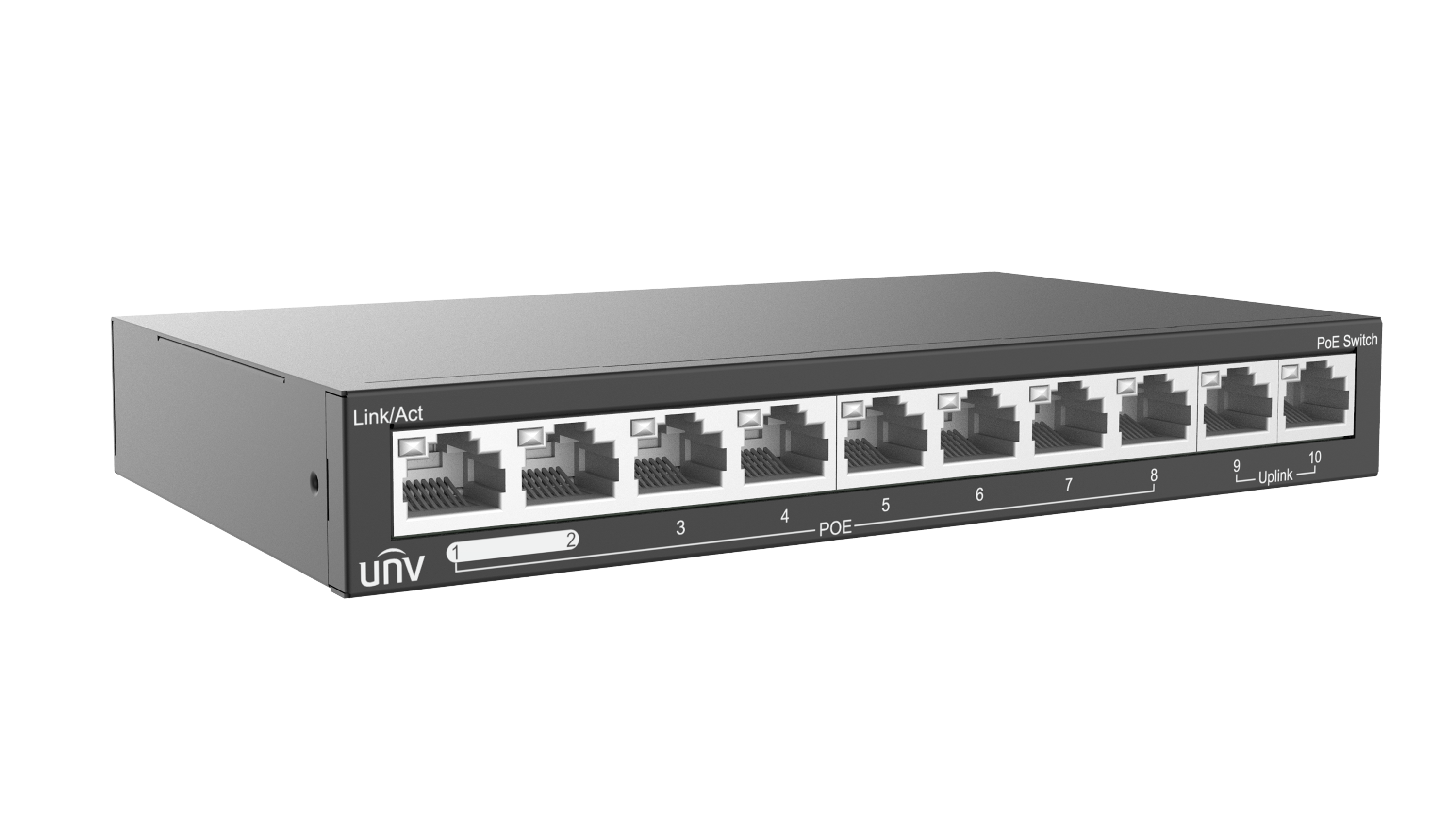

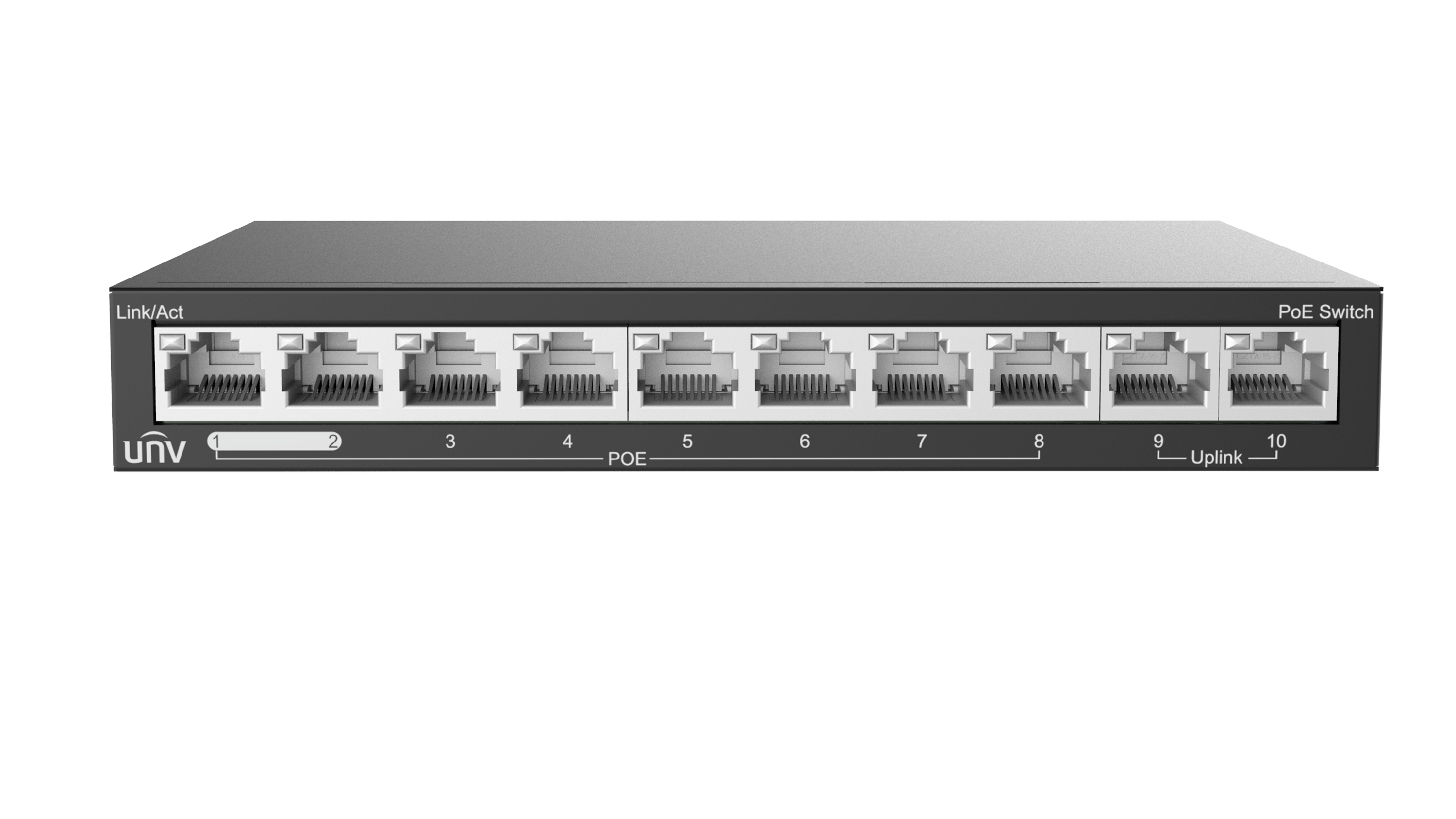

NSW2020-10T-POE-IN | ||||||||
Hardware Specification | ||||||||
Ports Type | 10×100Mbps network ports (RJ45), including 8 PoE ports | |||||||
Prior Ports | 1 to 2 | |||||||
Indicator | POWER Steady on: AC input is normal, POWER Off: No AC input, No PoE Indicator, PoE-MAX off: The POE power supply power of the whole machine is less than 80% of the specification, PoE-MAX Steady on : The POE power supply power of the whole machine is greater than 85% of the specification, LINK/ACT Off: No link, LINK/ACT Steady on: Linked, LINK/ACT Flashing: Transmitting data | |||||||
PoE | support POE | |||||||
Switching capacity | 2 Gbps | |||||||
Packet Buffer | 448K bit | |||||||
Max. PoE Power | Max capacity: 88 W, Max capacity for single port: 30 W | |||||||
Storage Temperature | -40 ℃ to 70 ℃ | |||||||
Working Mode | Default (Normal mode) : All ports can communicate with each other, EXTEND (Surveillance mode): Transmission distance up to 250 meters | |||||||
Power Supply | DC: 48/51V, powered by adapter (AC100-240V, 50/60Hz) | |||||||
Max.Power | 94W | |||||||
Operating humidity | 10%~90% (non-condensing) | |||||||
MAC | 1K | |||||||
Forwarding performance | 1.49Mpps | |||||||
Cooling Fans | 0 | |||||||
Weight | 0.29KG | |||||||
Storage humidity | 5%~90% (non-condensing) | |||||||
Dimensions (W×D×H) | 171*103*25mm | |||||||
Operating temperature | 0 ℃ to 40 ℃ (32 ℉ to 104 ℉) | |||||||
Standards | IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at |
