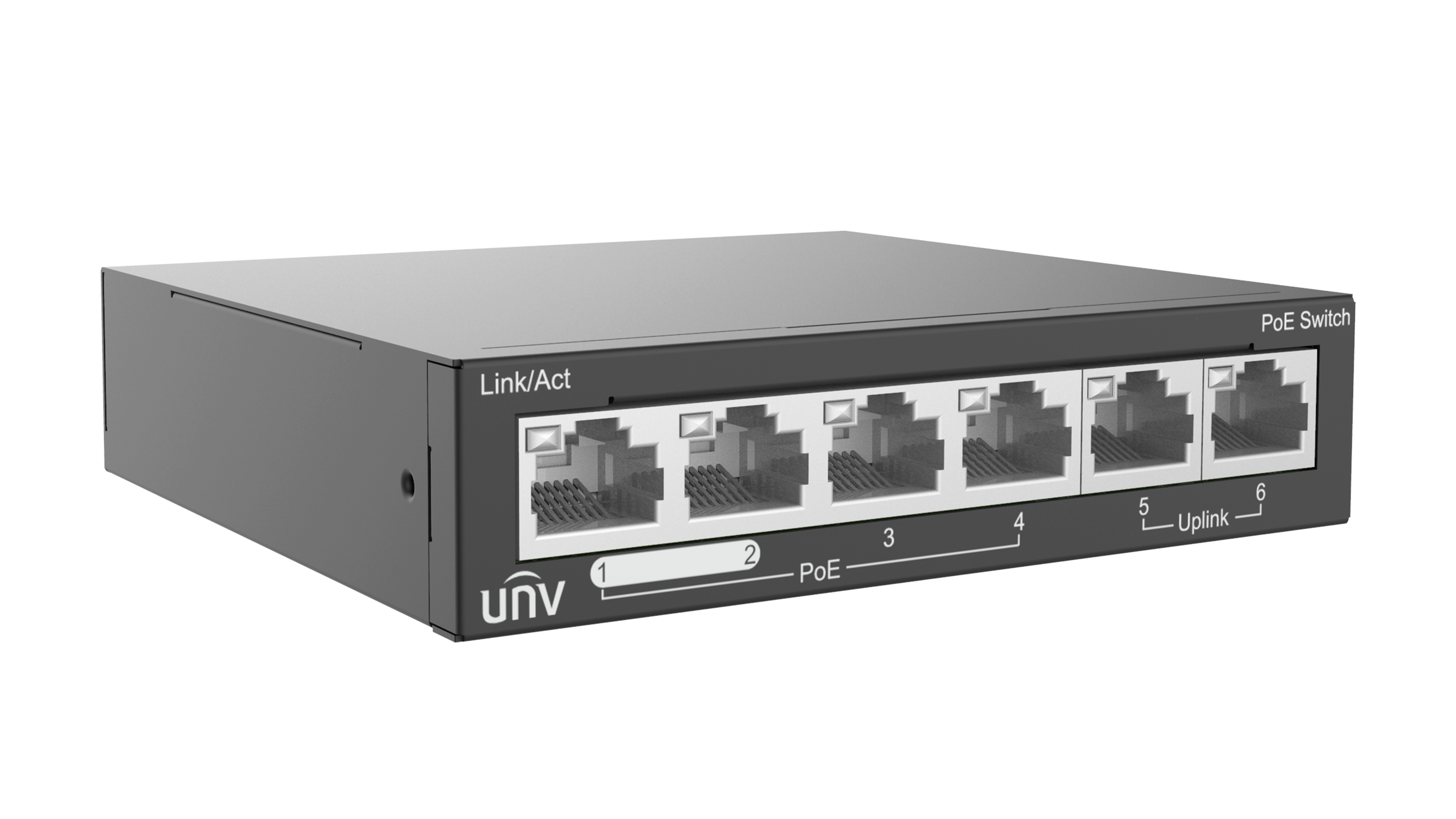

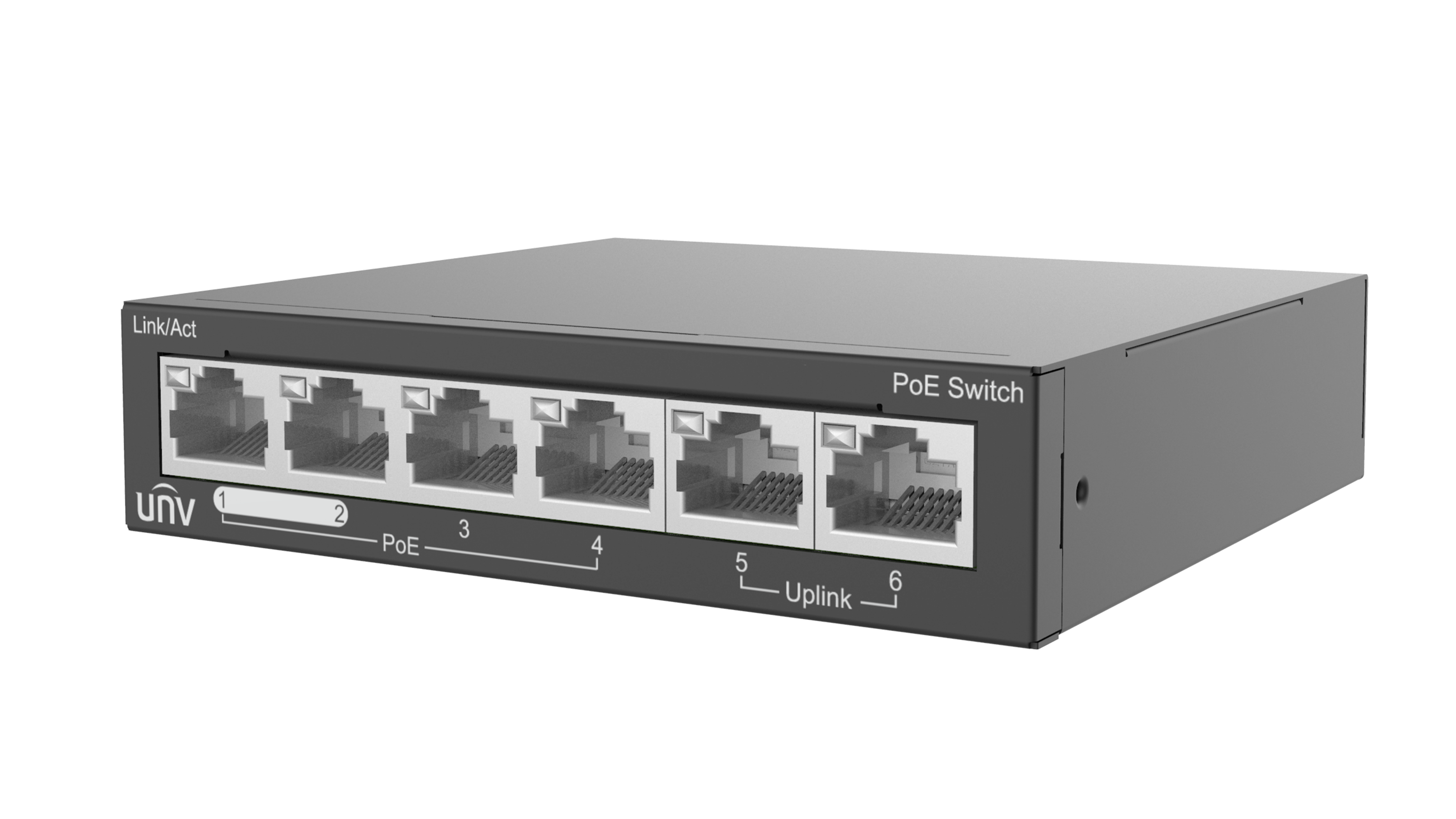

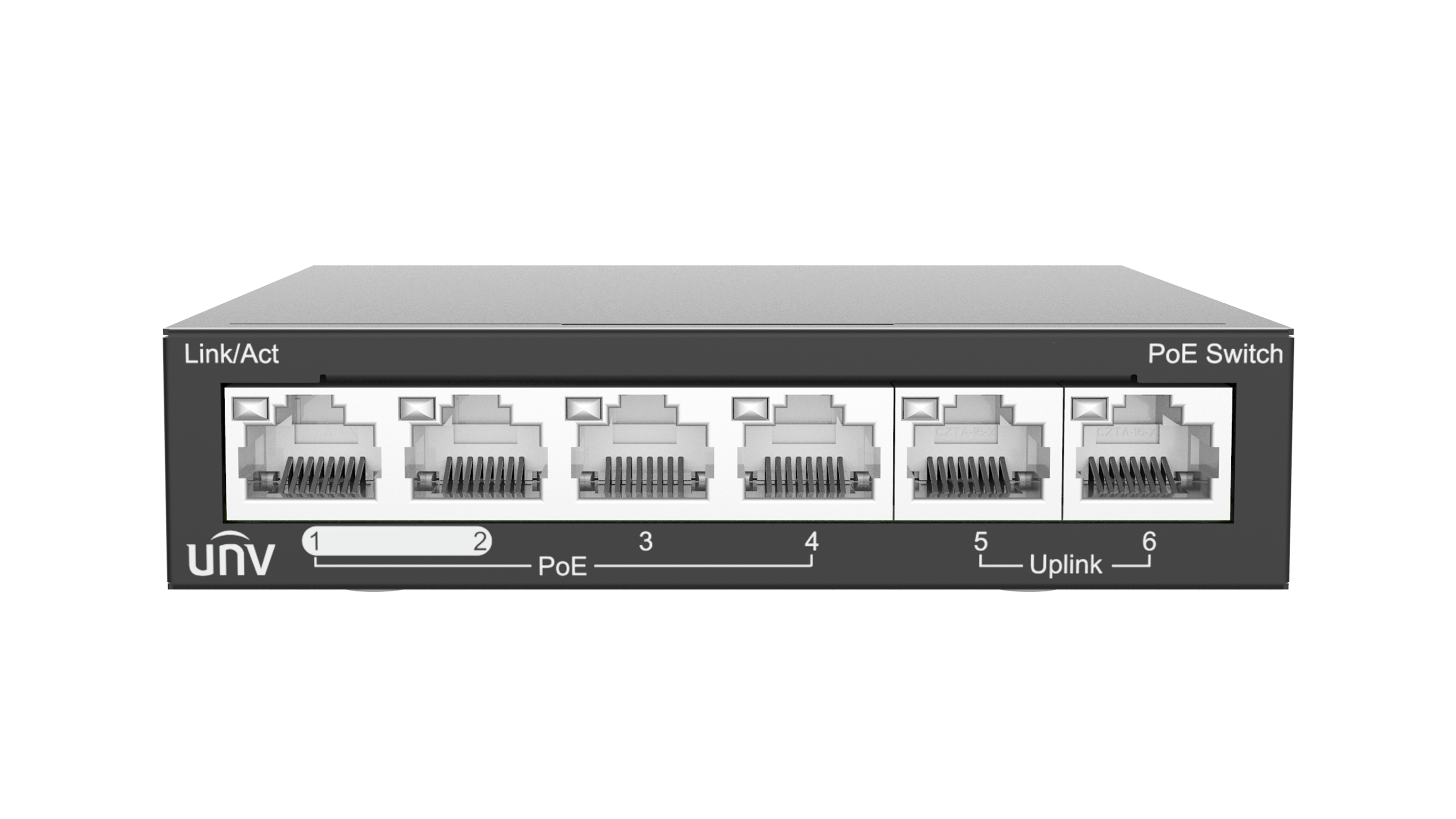

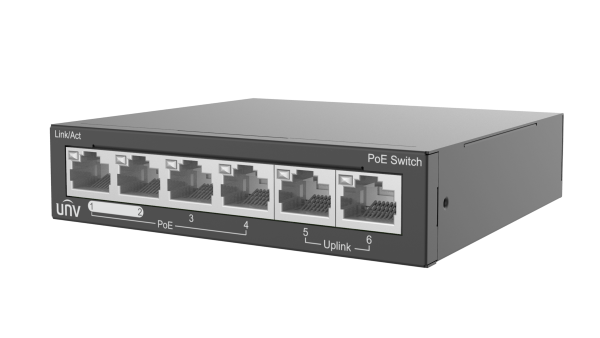

NSW2020-6T-POE-IN

Unmanaged Ethernet Switch(PoE)

• Multiple working modes to address your business needs: Default(Normal mode), EXTEND(Surveillance mode)
• Support port traffic control
• Up to 250m transmission distance on Extend mode
• Support buffer optimization
• All metal housing, safe and reliable

Specification

Download

How to buy

Datasheet
HD Image
Quick Guide
Dimensions

Class	Date	Title	Language	Type	Preview	Download
Datasheet	2026/6/23 9:20:51	UNV NSW2020-6T-POE-IN Ethernet PoE Switches.pdf	English	pdf	Preview	Download

Class	Date	Title	Type	Download
HD Image	2026/9/20 2:06:05	NSW2020-6T-POE-IN_HD_Image_1.png	png	Download
HD Image	2026/9/20 2:06:05	NSW2020-6T-POE-IN_HD_Image_2.png	png	Download
HD Image	2026/9/20 2:06:05	NSW2020-6T-POE-IN_HD_Image_3.png	png	Download

Class	Date	Title	Language	Type	Preview	Download
Quick Guide	2026/6/24 16:00:39	Quick Guide.pdf	English	pdf	Preview	Download

Class	Date	Title	Download
Dimensions	2026/9/20 2:06:05	NSW2020-6T-POE-IN_Dimensions_1.png	Download

Want to learn more?

Contact sales

0%

	NSW2020-6T-POE-IN
Hardware Specification
Ports Type	6×100Mbps network ports (RJ45), including 4 PoE ports
Switching capacity	1.2 Gbps
Power Supply	DC: 48/51V, powered by adapter(100 to 240V, 50/60Hz)
Forwarding performance	0.90Mpps
MAC	1K
PoE Standard	IEEE 802.3 at, IEEE 802.3af
Packet Buffer	448K bit
PoE Mode	ModeB (4578)
Max.PoE Power	Max capacity:60W Max capacity for single port: 30W
Prior Ports	1 to 2
Standards	IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at
Cooling Fans	0
Max.Power	65W
Operating Temperature	0°C to 45°C (32°F to 113°F)
Operating Humidity	10% to 90% (noncondensing)
Indicator	POWER: Steady on: AC input is normal Off: No AC input No PoE Indicator PoE-MAX： off ：The POE power supply power of the whole machine is less than 80% of the specification Steady on : The POE power supply power of the whole machine is greater than 85% of the specification LINK/ACT： Off: No link Steady on: Linked Flashing: Transmitting data
Dimensions (W×D×H)	10710125mm
Weight	0.19KG
Working Mode	Default (Normal mode) : All ports can communicate with each other, EXTEND (Surveillance mode): Transmission distance up to 250 meters
Compliance
NDAA Compliant	Support
