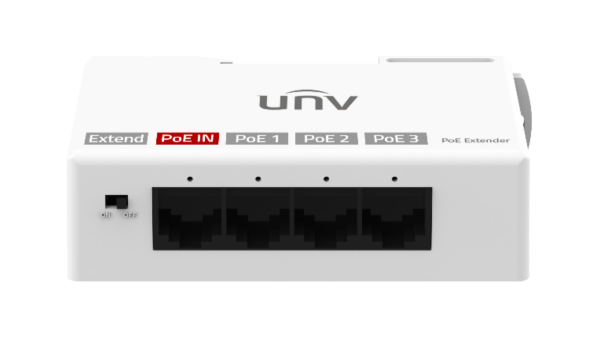

| NTA-PET-4T-I-IN | ||||||||
| Hardware Specification | ||||||||
| Ports Type | 1x 100M PoE PD port 3x 100M PoE PSE ports | |||||||
| Switching capacity | 0.8Gbps | |||||||
| Forwarding performance | 0.5952Mpps | |||||||
| MAC | 2K | |||||||
| PoE Standard | IEEE 802.3af, IEEE 802.3 at | |||||||
| Max.Power | Mainboard Power Consumption: <1W | |||||||
| Power Supply | PoE Input: 44V to 57V Max. input power: 30W Max. output power: 25W | |||||||
| Working Mode | DIP Switch OFF:Link extension mode disabled. DIP Switch ON:Link extension mode enabled,PoE and data distance extended to 250m,rate reduced to 10Mbps | |||||||
| Storage Temperature | -40~70°C | |||||||
| Operating Temperature | 0~40°C | |||||||
| Indicator | PoE IN indicator, PoE1 indicator, PoE2 indicator, PoE3 indicator | |||||||
| Waterproof | No | |||||||
| Packing | ||||||||
| Once packing dimension | Product Dimensions: 96x66.5x28mm Package Dimensions: 100x72x31mm Net Weight: 0.074kg Gross Weight: 0.087kg | |||||||
| Twice packing dimension | Carton Dimensions: 375x335x220mm Quantity per Carton: 100 units Carton Weight: 9.7kg | |||||||
