UAC-B112-F28(40)-X

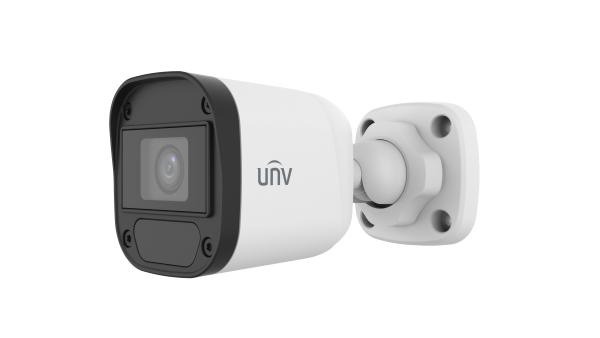

2MP Fixed IR Bullet Analog Camera

• 2MP high quality image
• TVI/AHD/CVI/CVBS
• IR-cut filter with auto switch (ICR)
• Supports 180° horizontal flip, 180° vertical flip
• OSD configuration menu, easy to operate
• IP67 waterproof and dustproof design, high reliability
• OSD configuration menu in 11 languages
• 3D noise reduction technology delivers clean and sharp images

เอกสารข้อมูลผลิตภัณฑ์
รูปภาพความละเอียดสูง
คู่มือผู้ใช้
คู่มือฉบับย่อ
ขนาด
เฟิร์มแวร์

Class	Date	Title	Language	Type	Preview	Download
Datasheet	2026/6/22 21:31:26	UNV UAC-B112-F28(40)-X 2MP Fixed IR Bullet Analog Camera.pdf	English	pdf	Preview	Download

Class	Date	Title	Type	Download
HD Image	2026/9/7 15:41:15	UAC-B112-F28-X_HD_Image_1.png	png	Download
HD Image	2026/9/7 15:41:15	UAC-B112-F28-X_HD_Image_2.png	png	Download
HD Image	2026/9/7 15:41:15	UAC-B112-F28-X_HD_Image_3.png	png	Download

Class	Date	Title	Language	Type	Preview	Download
User Manual	2026/8/24 14:46:09	UNV-Analog Cameras User Manual.pdf	English	pdf	Preview	Download

Class	Date	Title	Language	Type	Preview	Download
Quick Guide	2026/7/3 5:00:30	Quick Guide.pdf	English	pdf	Preview	Download

Class	Date	Title	Download
Dimensions	2026/9/7 15:41:15	UAC-B112-F28-X_Dimensions_1.png	Download

Title	Language	Type	Download
GUAC-B1111.1.5.250718.zip	English	zip	Download

	UAC-B112-F28-X	UAC-B112-F40-X
Camera
Max Resolution	2 MP
Sensor Size	1/3.0" CMOS
Min. Illumination	0.02 lux (F2.0, AGC ON) 0 lux (IR on)
Lens
Focus	2.8 mm	4.0 mm
Lens Mount	M12
Angle of View (H)	90.5°	80.2°
Angle of View (V)	49.6°	40.7°
Angle of View (D)	109.5°	90.5°
Illuminator
Illuminator Number	One IR illuminator
Illumination Distance	20m
Lifetime	≥ 60000 hours
Video
Resolution	1080P: 1920(H)×1080(V) 720P: 1280(H) ×720(V)
Frame Rate	TVI: 1080P@25fps (default), 1080P@30fps; 720P@25fps, 720P@30fps AHD: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps CVI: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps CVBS: PAL, NTSC
Shutter Time	PAL: 1/25 s-1/50000 s, NTSC: 1/30 s-1/50000 s
Exposure Mode	Four modes: Global (default), BLC, HLC, DWDR
Day/Night	Three modes: Auto (default), Day, Night
Digital Noise Reduction	2D/3D
White Balance	Two modes: Auto (default), Manual
WDR	DWDR
Smart IR	Support
Flip	Supports 180°horizontal flip, 180°vertical flip
Interface
Power Interface	5.5 mm Power Interface
Video Output	BNC, supports TVI/AHD/CVI/CVBS
Operating Environment
Temperature	-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉)
Humidity	≤ 95% RH (non-condensing)
Surge Protection	4 KV for power, 4 KV for video output interfaces
General
Power	DC 12 V±25%
Power Consumption	MAX 2.0W
Mount	Corner Mount, Pole Mount
Dimensions	139.7mm62.7mm65.4mm (LWH)	142mm63mm65mm (LWH)
Material	Plastic
Weight	145g(0.32lb)
OSD Menu Language	11 Languages: English, German, Spanish (Latin America), French, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Turkish
Certification
EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035), FCC (FCC 47 CFR part15 B)
Safety	CE-LVD (EN 62368-1)
Environment	CE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU)
Protection	IP67 (IEC 60529)
