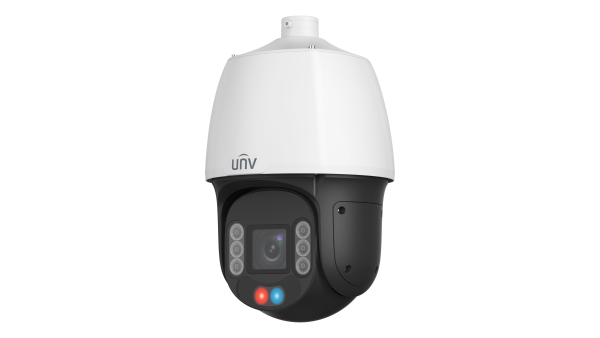

| IPC6624SFW-X33-C-VD2 | ||||||||
| Camera | ||||||||
| Max Resolution | 4 MP | |||||||
| Sensor | 1/2.8" CMOS | |||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| Shutter | Auto/Manual, 1 to 1/100000 s | |||||||
| WDR | 120 dB | |||||||
| S/N | > 56 dB | |||||||
| Case Type | PT | |||||||
| Lens | ||||||||
| Focal Length | 4.5 to 148.5 mm | |||||||
| Digital Zoom | 8X | |||||||
| Optical Zoom | 33X | |||||||
| Iris | F1.5 to F4.0 | |||||||
| Field of View (H) | 53.61° to 2.68° | |||||||
| Field of View (V) | 31.73° to 1.50° | |||||||
| Field of View (D) | 63.26° to 3.30° | |||||||
| DORI | ||||||||
| DORI Distance (Detect) | 105.8 m to 3172.5 m (346.9 ft. to 10408.5 ft) | |||||||
| DORI Distance (Observe) | 42.3 m to 1269.0 m (138.8 ft. to 4163.4 ft) | |||||||
| DORI Distance (Recognize) | 21.2 m to 634.5 m (69.4 ft. to 2081.7 ft) | |||||||
| DORI Distance (Identify) | 10.6 m to 317.3 m (34.8 ft. to 1041.0 ft) | |||||||
| Video | ||||||||
| Video Compression | H.265, H.264, MJPEG, Ultra 265 | |||||||
| Frame Rate | Main Stream Max: 4 MP (2688 × 1520), 30 fps Main Stream Default: 4 MP (2560 × 1440), 25 fps Sub Stream Max: 1080P (1920 × 1080), 30 fps Third Stream Max: D1 (720 × 576), 30 fps Fourth Stream Max: D1 (720 × 576), 30 fps Fifth Stream Max: D1 (720 × 576), 30 fps | |||||||
| Video Bit Rate | 128 Kbps to 16 Mbps | |||||||
| U-code | Support | |||||||
| Privacy Mask | 24 areas, up to 8 areas per scene | |||||||
| ROI | Up to 8 areas | |||||||
| Video Stream | Five streams | |||||||
| OSD | Up to 10 OSDs | |||||||
| Events | ||||||||
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, Alarm input, Alarm output, HTTP authentication | |||||||
| Audio | ||||||||
| Audio Compression | G.711U, G.711A, AAC-LC | |||||||
| Two-way Audio | Support | |||||||
| Suppression | Support | |||||||
| Sampling Rate | 8 kHz, 16 kHz | |||||||
| Storage | ||||||||
| Edge Storage | MicroSD, up to 512 GB | |||||||
| Network Storage | NAS (NFS) | |||||||
| Network | ||||||||
| Protocols | SSH, IGMP, RTP, RTMP, RTCP, IPv4, SSL/TLS, QoS, 802.1x, HTTPS, HTTP, UPnP, NTP, DDNS, DNS, RTSP, DHCP, UDP, TCP, ARP, ICMP, IPv6, SMTP, PPPoE, SNMP | |||||||
| Compatible Integration | SDK, API, ONVIF (Profile S, Profile G, Profile T, Profile M) | |||||||
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | |||||||
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF, TLS 1.3 | |||||||
| Client | EZStation, UNV-Link, UNV-Link Pro | |||||||
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ | |||||||
| PTZ | ||||||||
| Preset Patrol | 16 patrols, up to 64 presets for each patrol | |||||||
| Patrol Stay Time | 15 s to 1800 s | |||||||
| Tilt Range | -15° to 90° (auto flip) | |||||||
| Pan Speed | 0.1°/s to 288°/s | |||||||
| Pan Range | 360° (endless) | |||||||
| Preset Image Freeze | Support | |||||||
| Home Position | Support | |||||||
| Tilt Speed | 0.1°/s to 288°/s | |||||||
| Number of Presets | 1024 | |||||||
| Image | ||||||||
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2, Area white balance | |||||||
| Digital Noise Reduction | 2D/3D DNR | |||||||
| BLC | Support | |||||||
| Flip | Normal, Flip vertical, Flip horizontal, 180° | |||||||
| HLC | Support | |||||||
| Defog | Digital defog | |||||||
| Low Illumination Characteristics | ColorHunter with wise-ISP | |||||||
| Image Stabilization | DIS | |||||||
| Interface | ||||||||
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] | |||||||
| Alarm I/O | 2/1 | |||||||
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet | |||||||
| Built-in Speaker | Support | |||||||
| Serial Port | 1 × RS485 | |||||||
| Intelligent | ||||||||
| People Counting | Support people flow counting and crowd density detection | |||||||
| Exception Detection | Object removed, Object Left Behind | |||||||
| Auto Tracking | UNV Large Model | |||||||
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | |||||||
| Illuminator | ||||||||
| Illumination Distance (Warm Light) | 100 m (328.1 ft) | |||||||
| Illumination Distance (IR) | 250 m (820.2 ft) | |||||||
| Certification | ||||||||
| Safety | UL (UL 62368-1) CUL (CAN/CSA C22.2 No. 62368-1) CE-LVD (EN IEC 62368-1) | |||||||
| EMC | CE-EMC (EN 55032; EN IEC 61000-3-2; EN 61000-3-3; EN 50130) FCC SDoC (47 CFR Part 15; Subpart B) | |||||||
| Environment | CE-ROHS (2011/65/EU; (EU) 2015/863) WEEE (2012/19/EU) | |||||||
| Protection | IP67 (IEC 60529) ; IK10 (IEC62262; Anti-Vandalism Except for the Front Window) | |||||||
| General | ||||||||
| Power Interface | Wires with cold-pressed terminal | |||||||
| Dimensions | Ø227 mm × 390 mm (Ø8.9" × 15.4") (Ø × H) | |||||||
| Weight | 5.26 kg (11.60 lb) | |||||||
| Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
| Surge Protection | 6 KV | |||||||
| Working Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
| Reset Button | Support | |||||||
| Power | DC 24 V±25%, AC 24 V±25%, PoE (IEEE 802.3at) | |||||||
| Power Consumption | Max. 21.40 W | |||||||
| LED Indicator | 1, red/blue | |||||||
| Live View | ||||||||
| 3D Privacy Mask | Support | |||||||
| Compliance | ||||||||
| NDAA Compliant | Support | |||||||
