GC-MD5e-IN

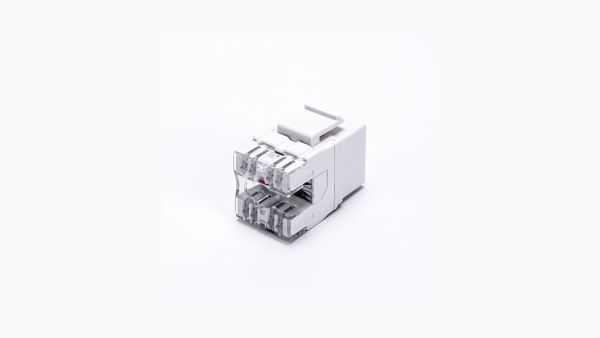

Cat5e Unshielded Information Module

• Support ANSI/TIA568C.2-2009
• 3μ inches gold-plated for excellent contact performance
• Separate wire peak, easy for separating wires
• Simple termination using standard 110 Block tools and Krone tools
• Support T568A & T568B wiring

Datasheet
HD Image
Dimensions

Class	Date	Title	Language	Type	Preview	Download
Datasheet	2025/12/6 9:24:25	UNV GC-MD5e-IN UTP Keystone Jcaket.pdf	English	pdf	Preview	Download

Class	Date	Title	Type	Download
HD Image	2025/10/28 3:14:39	GC-MD5e-IN_HD_Image_1.png	png	Download

Class	Date	Title	Download
Dimensions	2025/10/28 3:14:39	GC-MD5e-IN_Dimensions_1.png	Download

	GC-MD5e-IN
Physical
Product Type	UTP CAT5e Punch-down Module
Packing	Once Packing: 1 PCS / packet Twice Packing: 100 PCS / Box
Mechanical
Shell Material	PC
Termination Contact Plating	Phosphor Bronze, 3μ inches gold-plated
IDC Material	Phosphor Bronze
Plug to Jack Mating Cycles	≥750 times
IDC Cycles	≥200 times
Compatible Conductor Gauge,solid	0.35mm -- 0.6mm
OD. of Connector Calbe	5.0mm -- 7.5mm
Termination Type	IDC, 110 Block tools or Krone tools, Support T568A&T568B wiring
Installation	Standard face plates , blank patch panels
Electrical
Voltage Rating	125V AC RMS
Current Rating at Temperature	1.5 A @ 20 °C
Contact Resistance	≤20mΩ
Insulation Resistance	≥500MΩ，100V DC
Withstand Voltage	DC 1000V or AC 700V @ 60s
Standard	ANSI/TIA568C.2-2009
Environment
Operating Temperature	-25℃ to 70℃
Store Temperature	10 to 90%RH
