GC-RJ6-IN

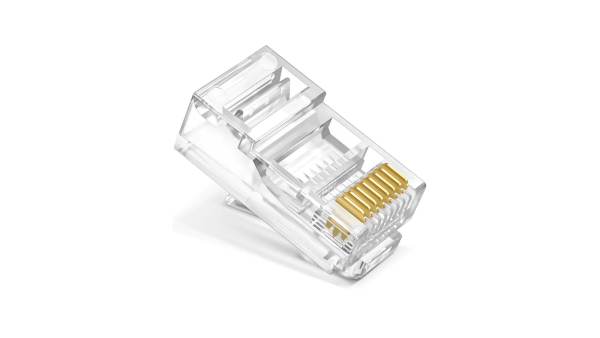

Cat6 Unshielded Crystal Head

• 3μ inches gold-plated for excellent contact performance
• Stable data transmission with up to 750 plugs and unplugs
• Highly transparent PC material support RoHS standards, wear-resistant and durable
• 8 pins × 8 conductors, support 1000Bas-T Ethernet

Datasheet
HD Image
Dimensions

Class	Date	Title	Language	Type	Preview	Download
Datasheet	2025/12/6 9:24:17	UNV GC-RJ6-IN UTP RJ-45 Plugs.pdf	English	pdf	Preview	Download

Class	Date	Title	Type	Download
HD Image	2025/10/28 3:14:44	GC-RJ6-IN_HD_Image_1.png	png	Download

Class	Date	Title	Download
Dimensions	2025/10/28 3:14:44	GC-RJ6-IN_Dimensions_1.png	Download

	GC-RJ6-IN
Physical
Product Type	UTP CAT6 RJ-45 8P8C plugs
Packing	100PCS / Box, 50 Boxes / Case Once packing dimension：126.59cm Twice packing dimension：503527cm
Weight	0.20kg / Box 10kg / Case
Mechanical
Shell Material	Polycarbonate
Conductor Material	Copper alloy ，3μ inches gold-plated
Operating Life	≥750 Cycles
Fire Resistance	UL 94V-2
Cable	24-26AWG
Maximum Insulation Diameter of Solid Wire	0.89-0.99mm
Maximum insulation Diameter of Cable Jacket	5.7mm
Electrical
Voltage Rating	150V AC RMS
Current Rating	1.5A
Insulation Resistance	≥1000MΩ，500V DC
Withstand Voltage	1000V D.C. or A.C. PEAK; one contact to all other contacts continued together. 1500V D.C. or A.C. PEAK; all contacts connected together to shield,,(housing/mounting plate) if present. @0.5mA 50 Hz or 60 Hz a minute.
Standard	IEC 60603-7
Environment
Operating Temperature	-10℃ to 40℃
Store Temperature	-25℃ to 55℃
Operating Humidity	<80%RH
