CAB-LC3100B-E1-CCA-IN - Uniview - Leader of AIoT Solution

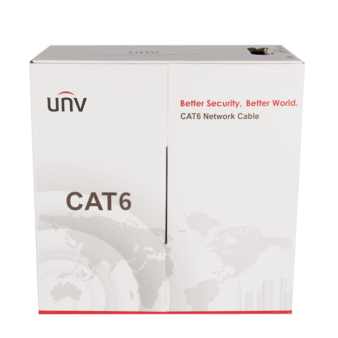

CAB-LC3100B-E1-CCA-IN

Cat6(UTP),305m,CCA,White

Especificação

Baixar

Class	Date	Title	Language	Type	Preview	Download
Datasheet	2025/12/5 14:09:46	UNV CAB-LC3100B-E1-CCA-IN UTP Category 6 CCA Cables（0.50mm）.pdf	English	pdf	Preview	Download

Class	Date	Title	Type	Download
HD Image	2025/10/28 3:10:46	CAB-LC3100B-E1-CCA-IN_HD_Image_1.png	png	Download

Want to learn more?

	CAB-LC3100B-E1-CCA-IN
Cable
Product model	CAB-LC3100B-E1-CCA-IN
Test Standard	None
Packing length	305±1 m
Rip-cord	Yes
Seperator	Yes
Ambient temperature	-20℃～75℃
Conductor
Material	CCA (copper content 19%-23%)
AWG	24
Nom.O.D.(mm)	0.50±0.01 mm
Insulation
Material	HDPE
Diameter	0.87±0.03 mm
Color	Blue/White- Blue,Green/White-Green,Orange/White-Orange,Brown/White-Brown
Sheath
Material	PVC
External O.D.	5.2±0.4 mm
Thickness	0.45±0.05 mm
Color	White
Surface Printing
Letter height	3.0±0.3 mm
Print error / Space	1±0.005 m
Color	Black
Packing
Packing	Pallet
Once packing dimension	420mm205mm420mm
