CAB-LC3100B-IN

Cat6(UTP)-305m-Overseas

Especificação

Baixar

Class	Date	Title	Language	Type	Preview	Download
Datasheet	2025/12/5 16:35:06	UNV CAB-LC3100B-IN UTP Category 6 Cables (0.57mm).pdf	English	pdf	Preview	Download

Class	Date	Title	Type	Download
HD Image	2025/10/28 3:10:42	CAB-LC3100B-IN_HD_Image_1.png	png	Download

Want to learn more?

0%

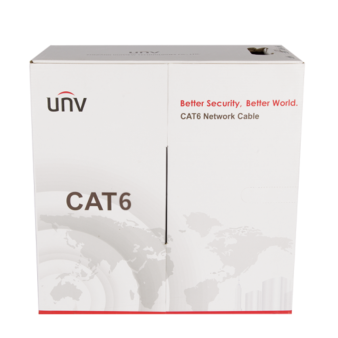

	CAB-LC3100B-IN
Cable
Product model	CAB-LC3100B-IN
Test Standard	ISO/IEC11801 ED.2 ANSI/TIA-568-C.2
Product specification	Cat6. U/UTP. 4×2×0.57mm
Packing length	305±1m
Ambient temperature	-20℃～60℃
Rip-cord	Yes
Crossing backbone	Yes
Conductor
AWG	23
Nom.O.D.(mm)	0.57±0.005 mm
DC resistance	≤95 Ω/km
Material	Solid-Bare Copper
Insulation
Diameter	1.02±0.05 mm
Material	HDPE
Thickness	0.2±0.02 mm
Color	Blue/White- Blue,Green/White-Green,Orange/White-Orange,Brown/White-Brown
Pitch
Offset pitch	≤20 mm
Cable pitch	≤120 mm
Sheath
Material	PVC(complies RoHS/REAC)
Thickness	0.6±0.05 mm
External O.D.	6.2±0.3 mm
Tensile strength	>13.5 Mpa
Color	Blue(RAL5015)
Surface Printing
Color	Black
Letter height	3.0±0.3 mm
Print error / Space	1±0.005 m
Case number	Yes
Packing
Packing	Carton
Once packing dimension	420mm205mm420mm
Twice packing dimension	450mm440mm445mm
Twice packing quantity	2 cases
