NSW1010-8GT-IN - Uniview - Leader of AIoT Solution


NSW1010-8GT-IN

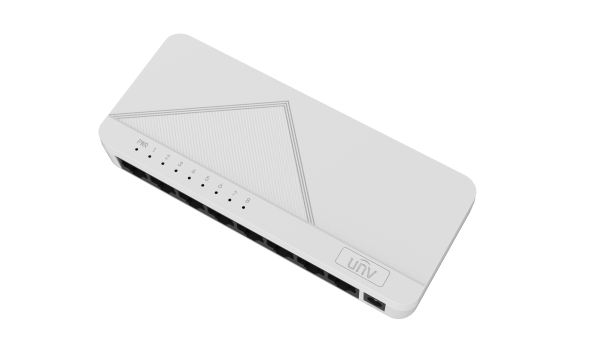

8-Port Gigabit Plastic Shell Switch

• Supports IEEE802.3 and IEEE802.3u standards.
• Supports 10/100Mbps or 10/100/1000Mbps self-adaptive Ethernet port.
• Supports auto MDI/MDIX.
• Supports IEEE802.3 flow control for full-duplex mode and backpressure for half-duplex mode.

Datasheet
HD Image

Class	Date	Title	Language	Type	Preview	Download
Datasheet	2025/6/20 15:19:51	UNV NSW1010-8GT-IN Unmanaged Ethernet Switch.pdf	English	pdf	Preview	Download

Class	Date	Title	Type	Download
HD Image	2026/5/31 3:18:11	NSW1010-8GT-IN_HD_Image_1.png	png	Download
HD Image	2026/5/31 3:18:11	NSW1010-8GT-IN_HD_Image_2.png	png	Download
HD Image	2026/5/31 3:18:11	NSW1010-8GT-IN_HD_Image_3.png	png	Download

	NSW1010-8GT-IN
Hardware Specification
Ports Type	8 x 10/100/1000Mbps port (RJ45)
Network Media	10Base-T: Cat3, 4, 5 or higher UTP/STP (≤100m) 100Base-TX: Cat5 or higher UTP/STP (≤100m) 1000Base-TX: Cat5e or higher UTP/STP (≤100m)
Switching capacity	16 Gbps
Forwarding performance	11.9Mpps
MAC	2K
Jumbo Frame	15K
Transfer Mode	Store-and-forward
Dimensions (W×D×H)	Product: 1456021.5mm Packaging: 1468850mm
Carton Information	Carton dimensions: 530475315mm Carton quantity: 100PCS Carton weight: 17.6kg
Weight	Product: 0.111kg Packaging: 0.166kg
Mount Method	Desktop mount, wall mount
Cooling Fans	0
Operating humidity	10%～90% (non-condensing)
Storage Temperature	-20°C to 70°C
Storage Humidity	5% to 90% RH, noncondensing
