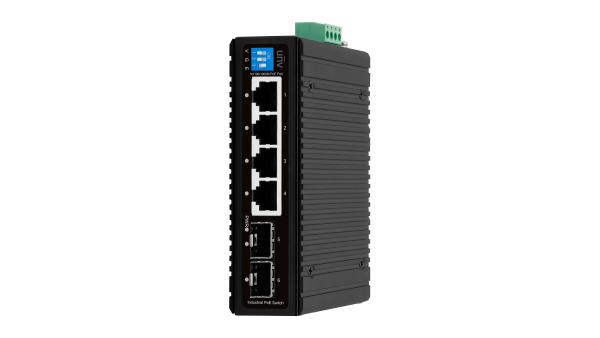

IS2000-4GT2GP-POE-IN@PWR75

Unmanaged Industrial Ethernet Switch(PoE)

• Support IEEE 802.3af/at standard. Port 1 supports HiPoE with a maximum of 60W.
• Working temperature -40~75°C, surge protection 6KV, ESD: Air 8KV, Contact 6KV
• 4PIN industrial terminal+ DC2.1 input interface, DC48-55V wide voltage input
• Support VLAN, Genius, Extend modes
• Support rail and wall mount installation

Especificação

Baixar

How to buy

Datasheet
HD Image
Quick Guide
Dimensions

Class	Date	Title	Language	Type	Preview	Download
Datasheet	2026/7/17 10:32:07	UNV IS2000-4GT2GP-POE-IN@PWR75 Industrial PoE Switch.pdf	English	pdf	Preview	Download

Class	Date	Title	Type	Download
HD Image	2026/7/18 3:02:29	IS2000-4GT2GP-POE-IN@PWR75_HD_Image_1.png	png	Download

Class	Date	Title	Language	Type	Preview	Download
Quick Guide	2026/7/3 4:44:12	Quick Guide.pdf	English	pdf	Preview	Download

Class	Date	Title	Download
Dimensions	2026/7/18 3:02:29	IS2000-4GT2GP-POE-IN@PWR75_Dimensions_1.png	Download

Want to learn more?

Contact sales

0%

	IS2000-4GT2GP-POE-IN@PWR75
Hardware Specification
Standards	IEEE802.3, IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3z
Ports Type	410/1000Mbps RJ45 PoE Ports 21000Mbps SFP Slots
Switching capacity	12Gbps
Jumbo Frame	10KBytes
Forwarding performance	8.92Mpps
Max.PoE Power	Max capacity: 65W Port1: Max capacity for single port: 60W Port2-4: Max capacity for single port: 30W Mode A 1/2 (-), 3/6 (+)
Max.Power	75W
MAC	8K
Transfer Mode	Store-and-forward
Dimensions (W×D×H)	1208734mm
Operating Temperature	-40°C to 75 °C
Operating Humidity	10% ~ 95% non-condensing
Storage Humidity	5% ~ 95% non-condensing
Indicator	PWR (Red) Off: Powered off On: Powered on Ports 1-4 /1-8(Green) Slow Flashing: 10/100/1000Mbps Link normal Off: Link blocked Fast Flashing: Data transmitting Ports G5-G6 /G9-G10(Green) On: 10/100/1000Mbps Link normal Off: Link blocked Flashing: Data transmitting
Electrostatic Standard	Air 8KV, Contact 6KV (Class B)
Surge Protection	Common mode 6KV, Differential mode 2KV (Class B)
Power Supply	DC:48-57V, powered by adapter (NVR-75-48, input voltage : 100-240V AC , output voltage : 48V DC, 1.6A , 32125.2113.5mm, DIN35 rail installation )
Working Mode	V: VLAN mode, ports 1-4 are isolated from each other, communicating with ports 5-6, E: Extend mode, when the PoE port is in Extend mode, ports 1-4 force 10Mbps to extend the transmission distance to 250meters, G: PoE watchdog on
Button	Dual color LED selection: default green (link data), switch yellow LED(PoE)
