IPC2125SR-ADF28(40)KM-H

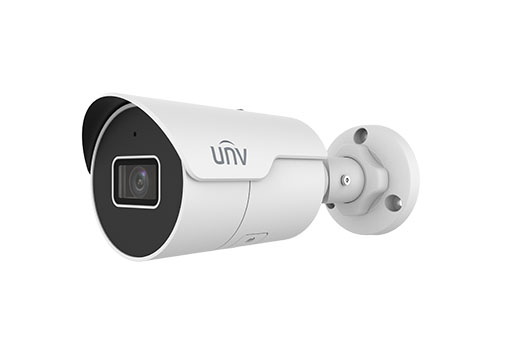

5MP HD Mini IR Fixed Bullet Network Camera

High quality image with 5MP, 1/2.7"CMOS sensor

5MP (2880*1620)@ 30/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;

Ultra 265, H.265, H.264, MJPEG

Easystar technology ensures high image quality in low illumination environment

120dB true WDR technology enables clear image in strong light scene

Support 9:16 Corridor Mode

Built‑in Mic

Smart IR, up to 50m (164ft) IR distance

Supports 512 G Micro SD card

IP67 protection

Support PoE power supply

3‑Axis

Specification
Download
How to buy
CameraDescription
Max Resolution5MP
Sensor1/2.7" CMOS
Min. IlluminationColour: 0.003 lux ( F1.6, AGC ON)
0 Lux with IR on
Day/NightIR‑cut filter with auto switch (ICR)
ShutterAuto/Manual, 1 ~ 1/100000s
Adjustment AnglePan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360°
S/N>52dB
WDR120dB
LensDescription
Focal LengthIPC2125SR-ADF28KM-H:2.8 mm IPC2125SR-ADF40KM-H:4.0 mm
Iris TypeFixed
IrisF1.6
Field of View (H)IPC2125SR-ADF28KM-H:110.0° IPC2125SR-ADF40KM-H:91.2°
Field of View (V)IPC2125SR-ADF28KM-H:58.7° IPC2125SR-ADF40KM-H:43.7°
Field of View (D)IPC2125SR-ADF28KM-H:130° IPC2125SR-ADF40KM-H:95.3°
DORIDescription
DORI Distance(Lens)IPC2125SR-ADF28KM-H:2.8mm IPC2125SR-ADF40KM-H:4.0mm
DORI Distance(Detect)IPC2125SR-ADF28KM-H:63.0m(206.7t) IPC2125SR-ADF40KM-H:90.0m(295.3ft)
DORI Distance(Observe)IPC2125SR-ADF28KM-H:25.2m(82.7ft) IPC2125SR-ADF40KM-H:36.0m(118.1ft)
DORI Distance(Recognize)IPC2125SR-ADF28KM-H:12.6m(41.3ft) IPC2125SR-ADF40KM-H:18.0m(59.1ft)
DORI Distance(Identify)IPC2125SR-ADF28KM-H:6.3m(20.7ft) IPC2125SR-ADF40KM-H:9.0m(29.5ft)
IlluminatorDescription
Supplemental LightIR
Illumination Distance(IR)50 m (164.0 ft)
Wavelength850 nm
IR On/Off ControlAuto/Manual
VideoDescription
Video CompressionUltra 265; H.265; H.264; MJPEG
H.264 Code ProfileBaseline profile, Main profile, High profile
Frame RateMain Stream: 5MP (2880*1620), Max 30fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps;
Video Bit Rate128 Kbps ~ 6144 Kbps
U-codeSupport
OSDUp to 4 OSDs
Privacy MaskUp to 4 areas
ROIUp to 8 areas
Video StreamDual Streams
ImageDescription
White BalanceAuto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2
Digital Noise Reduction2D/3D DNR
Smart IRSupport
FlipNormal; Flip Vertical; Flip Horizontal; 180°; 90°Clockwise; 90°Anti‑clockwise
DewarpingN/A
HLCSupport
BLCSupport
DefogDigital Defog
EventsDescription
Basic DetectionCross Line (based on Human Body Detection); Intrusion (based on Human Body Detection); Motion Detection; Ultra Motion Detection; Tampering Alarm; Audio Detection
General FunctionWatermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication
AudioDescription
Audio CompressionG.711U; G.711A
Audio Bitrate64 Kbps
Two-way AudioN/A
SuppressionSupport
Sampling Rate8KHZ
StorageDescription
Edge StorageMicro SD, up to 512 GB
Network StorageANR; NAS (NFS)
NetworkDescription
ProtocolsIPv4; IGMP; ICMP; ARP; TCP; UDP; DHCP; RTP; RTSP; RTCP; RTMP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; QoS; SSL/TLS; 802.1x; SNMP
Compatible IntegrationONVIF (Profile S, Profile G, Profile T); API; SDK
User/HostUp to 32 users. 3 user levels: administrator, common user and operator
SecurityPassword Protection; Strong Password; HTTPS Encryption; Export Operation Logs; Basic and Digest Authentication for RTSP; Digest Authentication for HTTP; TLS 1.2; WSSE and Digest Authentication for ONVIF
ClientUNV‑Link;  UNV‑Link Pro; EZStation
Web BrowserPlug‑in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above; Plug‑in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
InterfaceDescription
Audio I/ON/A
Alarm I/ON/A
Serial PortN/A
Built-in MicSupport
Built-in SpeakerN/A
WIFIN/A
Network1 x RJ45 10M/100M Base‑TX Ethernet
Video OutputN/A
CertificationDescription
EMCCE‑EMC (EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 55035)
FCC (FCC 47 CFR part15 B)
SafetyCE LVD (EN 62368‑1)
UL/CUL (UL 62368‑1, CAN/CSA C22.2 No. 62368‑1)
EnvironmentCE‑RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU);
ProtectionIP67 (IEC 60529)
GeneralDescription
PowerDC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 5.6W
Power InterfaceØ 5.5mm coaxial power plug
Dimensions190×73×71mm (7.5”×2.9”×2.8”)
Weight0.40kg (0.88lb)
MaterialGraphene + Metal
Working Environment‑30 °C ~ 60 °C (‑22 °F ~ 140 °F), Humidity: ≤95% RH (non‑condensing)
Storage Environment‑30 °C ~ 60 °C (‑22 °F ~ 140 °F), Humidity: ≤95% RH (non‑condensing)
Surge Protection4KV
Reset ButtonSupport
Web Client Language13 Languages
English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian
