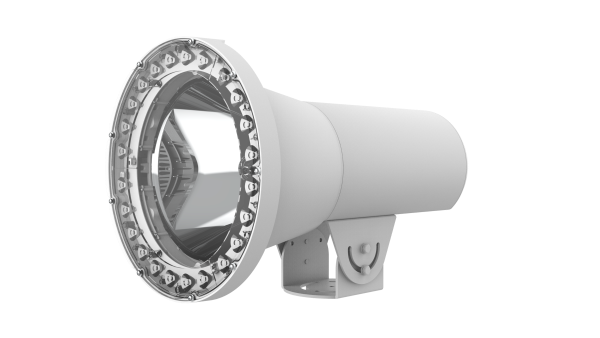

LAMP-H25-B-OS - Uniview - Global AIoT Solutions Provider

	LAMP-H25@B-OS
LED strobe
Trigger mode	Strobe: TTL level/switch Flash: Switch
White light flash
Color temperature	Xenon 6000±500K LED 4000±200K
Output energy	Flash 40J to 80J
White light flash lifetime	≥10 million times
Hardware Parameter
Strobe power	34.5W@3A/40% (active power)
Strobe illumination angle	10°
Flash duration	300us by default
Exposure index	40 to 64 (GN)
Response time	≤55ms (220V)
Interface	1 power input；1 flash trigger input；1 strobe trigger input
Operating temperature	-30°C to +60°C
Operating humidity	5% to 95% RH (non-condensing)
Structure
Power	AC 220V±20%, 40 to 60Hz
Be in common use
Weight	4.5kg
Dimensions (L × W × H)	436.1mm282mm279.6mm
Ingress protection	IP65

Class	Date	Title	Language	Type	Preview	Download
Datasheet	2026/6/22 22:49:06	UNV LAMP-H25@B-OS LED Strobe White Light Explosion Flash Integrated Lamp.pdf	English	pdf	Preview	Download
