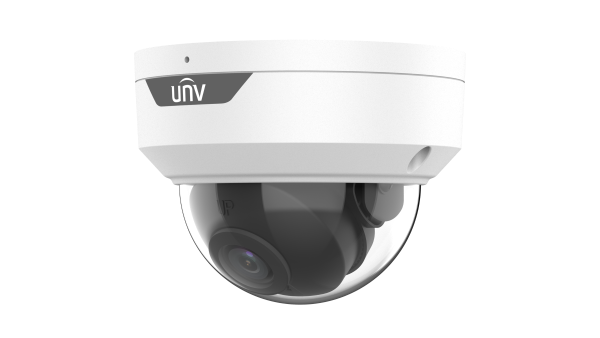

| IPC324LB-ADF28K-H3 | IPC324LB-ADF28K-H3 | IPC324LB-ADF40K-H3 | ||||||||||
| Camera | ||||||||||||
| Max Resolution | 4 MP | |||||||||||
| Sensor | 1/3.0" CMOS | |||||||||||
| Min. Illumination | Color: 0.01 Lux (F2.0, AGC ON), 0 Lux with IR | |||||||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||||||
| Adjustment Angle | Pan: 8° to 360°, Tilt: 0° to 68°, Rotate: 10° to 360° | |||||||||||
| S/N | >52 dB | |||||||||||
| WDR | 120 dB | |||||||||||
| Lens | ||||||||||||
| Focal Length | 2.8 mm 2.8 mm | 4.0 mm | ||||||||||
| Iris | F2.0 | |||||||||||
| Field of View (H) | 97.8 ° 97.8 ° | 76.3 ° | ||||||||||
| Field of View (V) | 55.7 ° 55.7 ° | 43.0 ° | ||||||||||
| Field of View (D) | 110.8 ° 110.8 ° | 88.8 ° | ||||||||||
| Lens Type | Fixed | |||||||||||
| Iris Type | Fixed | |||||||||||
| DORI | ||||||||||||
| DORI Distance (Lens) | 2.8 mm 2.8 mm | 4 mm | ||||||||||
| DORI Distance (Detect) | 63.0 m (206.6 ft.) 63.0 m (206.6 ft.) | 90.0 m (295.2 ft.) | ||||||||||
| DORI Distance (Observe) | 25.2 m (82.7 ft.) 25.2 m (82.7 ft.) | 36.0 m (118.6 ft.) | ||||||||||
| DORI Distance (Recognize) | 12.6 m (41.3 ft.) 12.6 m (41.3 ft.) | 18.0 m (59.0 ft.) | ||||||||||
| DORI Distance (Identify) | 6.3 m (20.7 ft.) 6.3 m (20.7 ft.) | 9.0 m (29.5 ft.) | ||||||||||
| Illuminator | ||||||||||||
| Illumination Distance (IR) | 30 m (98.4 ft.) | |||||||||||
| Wavelength | 850 nm | |||||||||||
| IR On/Off Control | Auto/Manual | |||||||||||
| Supplemental Light | IR | |||||||||||
| Video | ||||||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG (Sub Stream Only) | |||||||||||
| H.264 Code Profile | Baseline profile, Main profile, High profile | |||||||||||
| Frame Rate | Main Stream: 4 MP (2560 × 1440), max. 25 fps; 3 MP (2304 × 1296), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps Sub Stream: 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps; | |||||||||||
| Video Bit Rate | 128 Kbps to 6144 Kbps | |||||||||||
| OSD | Up to 4 OSDs | |||||||||||
| Privacy Mask | Up to 4 areas | |||||||||||
| ROI | Support | |||||||||||
| U-code | Support | |||||||||||
| Video Stream | Dual streams | |||||||||||
| Image | ||||||||||||
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2, Area white balance | |||||||||||
| Digital Noise Reduction | 2D/3D DNR | |||||||||||
| Smart IR | Support | |||||||||||
| Flip | Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise | |||||||||||
| HLC | Support | |||||||||||
| Dewarping | N/A | |||||||||||
| BLC | Support | |||||||||||
| Defog | Digital defog | |||||||||||
| Low Illumination Characteristics | Low-light | |||||||||||
| Events | ||||||||||||
| Basic Detection | Motion detection, Ultra motion detection (human/ vehicle detection) , Tampering alarm, Audio detection | |||||||||||
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication | |||||||||||
| Audio | ||||||||||||
| Audio Compression | G.711U, G.711A, AAC-LC | |||||||||||
| Audio Bitrate | G.711U/G.711A: 64 kbps, AAC-LC: 128 kbps | |||||||||||
| Two-way Audio | N/A | |||||||||||
| Suppression | Support | |||||||||||
| Sampling Rate | G.711U/G.711A: 8 kHz, AAC-LC: 8 kHz, 16 kHz, 48 kHz | |||||||||||
| Storage | ||||||||||||
| Edge Storage | MicroSD, up to 512 GB | |||||||||||
| Network Storage | ANR, NAS (NFS) | |||||||||||
| Network | ||||||||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, SNMP, IPv6 | |||||||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | |||||||||||
| Client | EZStation, APP | |||||||||||
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ | |||||||||||
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | |||||||||||
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | |||||||||||
| Interface | ||||||||||||
| Audio I/O | N/A | |||||||||||
| Alarm I/O | N/A | |||||||||||
| Serial Port | N/A | |||||||||||
| Built-in Mic | Support | |||||||||||
| Built-in Speaker | N/A | |||||||||||
| WIFI | N/A | |||||||||||
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet | |||||||||||
| Video Output | N/A | |||||||||||
| Certification | ||||||||||||
| Protection | IP67 (IEC 60529) IK10 (IEC 62262) | |||||||||||
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130-4) FCC (FCC 47 CFR part15 B) | |||||||||||
| Safety | CE-LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) | |||||||||||
| Environment | CE-RoHS (2011/65/EU ; (EU) 2015/863) ; WEEE (2012/19/EU) | |||||||||||
| General | ||||||||||||
| Power | DC 12 V±25%, PoE (IEEE 802.3af) | |||||||||||
| Power Consumption | Max. 3.6 W | |||||||||||
| Power Interface | Ø5.5 mm coaxial power plug | |||||||||||
| Dimensions | Ø111 mm × 83 mm (Ø4.4" × 3.3") (Ø × H) | |||||||||||
| Weight | 0.36 kg (0.79 lb.) | |||||||||||
| Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||||||
| Storage Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||||||
| Surge Protection | 4 KV | |||||||||||
| Reset Button | N/A | |||||||||||
| Material | Metal + Plastic | |||||||||||
| Web Client Language | 5 Languages: English, Russian, Spanish, Vietnamese, Turkish | |||||||||||
