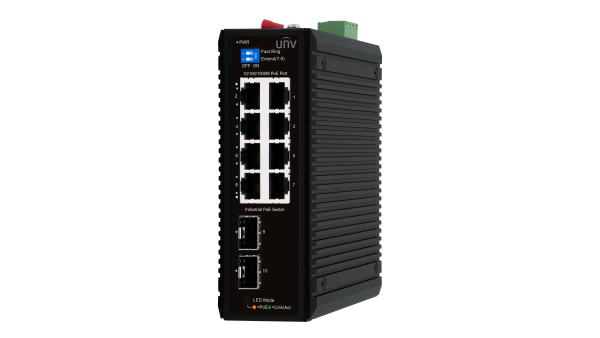

IS2000-8GT2GP-POE-IN@PWR120

Unmanaged Industrial Ethernet Switch(PoE)

• Support IEEE 802.3af/at standard. Port 1 supports HiPoE with a maximum of 60W.
• Working temperature -40~75°C, surge protection 6KV, ESD: Air 8KV, Contact 6KV
• 4PIN industrial terminal+ DC2.1 input interface, DC48-55V wide voltage input
• Support VLAN, Genius, Extend modes
• Support rail and wall mount installation

Especificación

Descargar

How to buy

Datasheet
HD Image
Quick Guide
Dimensions

Class	Date	Title	Language	Type	Preview	Download
Datasheet	2026/7/17 10:32:27	UNV IS2000-8GT2GP-POE-IN@PWR120 Industrial PoE Switch.pdf	English	pdf	Preview	Download

Class	Date	Title	Type	Download
HD Image	2026/7/18 3:02:28	IS2000-8GT2GP-POE-IN@PWR120_HD_Image_1.png	png	Download

Class	Date	Title	Language	Type	Preview	Download
Quick Guide	2026/7/3 4:44:12	Quick Guide.pdf	English	pdf	Preview	Download

Class	Date	Title	Download
Dimensions	2026/7/18 3:02:28	IS2000-8GT2GP-POE-IN@PWR120_Dimensions_1.png	Download

Want to learn more?

Contact sales

0%

	IS2000-8GT2GP-POE-IN@PWR120
Hardware Specification
Standards	IEEE802.3, IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3z
Ports Type	810/1000Mbps RJ45 PoE Ports 21000Mbps SFP Slots
Switching capacity	20Gbps
Jumbo Frame	10KBytes
Forwarding performance	14.88Mpps
Max.PoE Power	Max capacity: 110W Port1: Max capacity for single port: 60W Port2-8: Max capacity for single port: 30W Mode A 1/2 (-), 3/6 (+)
Max.Power	120W
MAC	8K
Transfer Mode	Store-and-forward
Dimensions (W×D×H)	13810851mm
Operating Temperature	-40°C to 75 °C
Operating Humidity	10% ~ 95% non-condensing
Storage Humidity	5% ~ 95% non-condensing
Indicator	PWR (Green) Off: Powered off On: Powered on Ports 1-4 /1-8(Green) Slow Flashing: 10/100/1000Mbps Link normal Off: Link blocked Fast Flashing: Data transmitting POE(Yellow) On: PoE powered on Off: PoE powered off Ports G5-G6 /G9-G10(Green) On: 10/100/1000Mbps Link normal Off: Link blocked Flashing: Data transmitting
Electrostatic Standard	Air 15KV, Contact 8KV (Class C)
Surge Protection	Common mode 6KV, Differential mode 2KV (Class B)
Power Supply	DC:48-57V, powered by adapter (NVR-120-48, input voltage : 100-240V AC , output voltage : 48V DC, 2.5A , 40125.2113.5mm,DIN35 rail installation)
Working Mode	Fast Ring: Fast Ring on, T<2sExtend：Extend mode, ports 7-8 force 10Mbps to extend the transmission distance to 250meters, and automatically activate the PoE watchdog mode
Button	Dual color LED selection: default green (link data), switch yellow LED(PoE)
