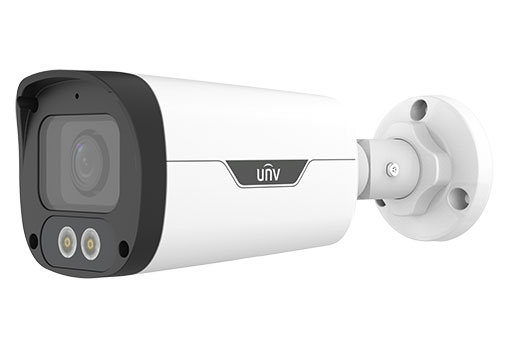

IPC2314LE-ADF28KM-WL | IPC2314LE-ADF40KM-WL | ||||||||
Camera | |||||||||
Sensor | 1/1.8″, 4.0 megapixel, progressive scan, CMOS | ||||||||
Minimum Illumination | Colour: 0.0005lux (F1.0, AGC ON) | ||||||||
Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||||
Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360° | ||||||
WDR | 120dB | ||||||||
S/N | >52dB | ||||||||
Lens | |||||||||
Lens | 2.8mm@F1.0 | 4.0mm@F1.0 | |||||||
Iris | Fixed | ||||||||
Field of View (H) | 110.4° | 89.4° | |||||||
Field of View (V) | 60.5° | 48.2° | |||||||
Field of View (D) | 115.2° | 94.7° | |||||||
DORI | |||||||||
DORI Distance | Lens (mm) | Detect(m) | Observe(m) | Recognize(m) | Identify(m) | ||||
2.8 | 43.4(142.5ft) | 17.4(57.0ft) | 8.7(28.5ft) | 4.3(14.3ft) | |||||
4.0 | 62.1(203.6ft) | 24.8(81.5ft) | 12.4(40.7ft) | 6.2(20.4ft) | |||||
Illuminator | |||||||||
LED Distance | Up to 30m (98ft) | ||||||||
LEDs Number | 2 | ||||||||
LED On/Off Control | Auto/Manual | ||||||||
Video | |||||||||
Video Compression | Ultra265, H.265, H.264, MJPEG | ||||||||
H.264 code profile | Baseline profile, Main profile, High profile | ||||||||
Frame Rate | Main Stream: 4MP (2688*1520), Max 25fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; | ||||||||
Video Bit Rate | 128 Kbps~6144Kbps | ||||||||
U-code | Support | ||||||||
OSD | Up to 4 OSDs | ||||||||
Privacy Mask | Up to 4 areas | ||||||||
ROI | Up to 8 areas | ||||||||
Video Stream | Dual streams | ||||||||
Image | |||||||||
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||||
Digital noise reduction | 2D/3D DNR | ||||||||
Smart Illumination | Support | ||||||||
Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||||||
Dewarping | N/A | ||||||||
HLC | Support | ||||||||
BLC | Support | ||||||||
Defog | Digital Defog | ||||||||
Events | |||||||||
Basic Detection | Cross line, intrusion(based on human body detection),Motion detection, Ultra motion detection, Tampering alarm, Audio Detection | ||||||||
General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP authentication | ||||||||
Audio | |||||||||
Audio Compression | G.711U, G.711A | ||||||||
Audio Bitrate | 64 Kbps | ||||||||
Two-way audio | N/A | ||||||||
Suppression | Support | ||||||||
Sampling Rate | 8KHZ | ||||||||
Storage | |||||||||
Edge Storage | Micro SD, up to 128GB | ||||||||
Network Storage | ANR, NAS(NFS) | ||||||||
Network | |||||||||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SNMP, QoS, RTMP,SSL/TLS | ||||||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API,SDK | ||||||||
User/Host | Up to 32 users. 2 user levels: administrator and common user | ||||||||
Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | ||||||||
Client | EZStation EZView EZLive | ||||||||
Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | ||||||||
Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | |||||||||
Interface | |||||||||
Audio I/O | N/A | ||||||||
Alarm I/O | N/A | ||||||||
Serial Port | N/A | ||||||||
Built-in Mic | Support | ||||||||
Built-in Speaker | N/A | ||||||||
WIFI | N/A | ||||||||
Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||||||
Video Output | N/A | ||||||||
Certifications | |||||||||
EMC | CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035) FCC (FCC 47 CFR part15 B) | ||||||||
Safety | CE LVD (EN 62368-1) CB (IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) | ||||||||
Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) | ||||||||
Protection | IP67 (IEC 60529) | ||||||||
General | |||||||||
Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||||||
Power consumption: Max 5.9W | |||||||||
Power Interface | Ø 5.5mm coaxial power plug | ||||||||
Dimensions (L × W × H) | 206 × 73 × 73mm (8.1” × 2.9” × 2.9”) | ||||||||
Weight | 0.47kg(1.04lb) | ||||||||
Material | Graphene + Metal | ||||||||
Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||||
Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||||
surge protection | 4KV | ||||||||
Reset Button | Support |
