1/1.8’’, Powered by lighthunter
Smart IR, up to 50m (164 ft) IR distance
Up to 120 dB Optical WDR (Wide Dynamic Range)
Adaptive fogging
Ultra 265, H.265, H.264, MJPEG
Triple streams
2688*1520@30fps in the main stream
ROI (Region of Interest)
ONVIF Conformance
DC12V or PoE+ power supply
Wide voltage range of ±25% in DC
Micro SD, up to 256 GB
Alarm 2 in and 1 out, Audio 1 in and 1 out
IP67 ingress protection
IK10 vandal resistant

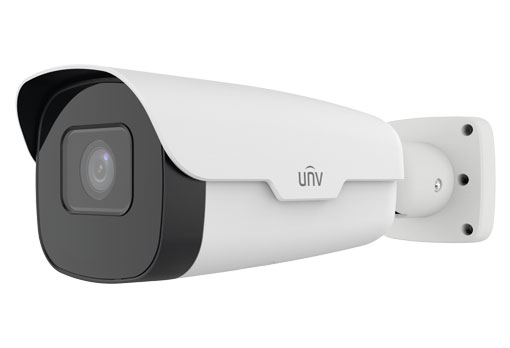

IPC264SA-DZK | |||||
Camera | |||||
Sensor | 1/1.8", 4.0 megapixel, progressive scan, CMOS | ||||
Lens | 2.8-12mm@F1.2, AF automatic focusing and motorized zoom lens | ||||
Iris | Fixed | ||||
DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
2.8 | 42(137.8ft) | 16.8(55.1ft) | 8.4(27.6ft) | 4.2(13.8ft) | |
12 | 180(590.4ft) | 72(236.2ft) | 36(118.1ft) | 18(59.0ft) | |
Angle of View (H) | 35.6°~107.9° | ||||
Angle of View (V) | 20.4°~75.4° | ||||
Angle of View (O) | 43.8°~140.3° | ||||
Shutter | Auto/Manual, 1 ~ 1/100000s | ||||
Min. Illumination | Colour:0.0005lux (F1.2, AGC ON) 0 lux with IR | ||||
WDR | 120dB | ||||
Day/Night | IR-cut filter with auto switch (ICR) | ||||
S/N | >56dB | ||||
IR Range | Up to 50m (164 ft) IR range | ||||
Wavelength | 850nm | ||||
IR On/Off Control | Auto/Manual | ||||
Defog | Digital Defog | ||||
Video | |||||
Video Compression | Ultra 265,H.265,H.264,MJPEG | ||||
Frame Rate | Main Stream: 4MP(2688*1520),Max 30fps; 4MP(2560*1440),Max 30fps; 2MP(1920*1080),Max 60fps Sub Stream: 2MP (1920*1080), Max 60fps; Third Stream: D1 (720*576), Max 60fps | ||||
Video Bit Rate | 128 Kbps~16 Mbps | ||||
ROI | Supported | ||||
Video stream | Triple streams | ||||
OSD | Up to 8 OSDs | ||||
Privacy Mask | Up to 8 areas (8 blacks / 8 mosaics) | ||||
Image | |||||
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
Digital noise reduction | 2D/3D DNR | ||||
Smart IR | Support | ||||
Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||
HLC | Support | ||||
BLC | Support | ||||
Event | |||||
Basic Detection | Audio detection, Tampering Alarm, Motion detection | ||||
General Function | Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||
Audio | |||||
Audio Compression | G.711U,G.711A | ||||
Two way audio | Supported | ||||
Sampling Rate | 8KHZ | ||||
Storage | |||||
Edge Storage | Micro SD, up to 256 GB | ||||
Network Storage | ANR,NAS(NFS) | ||||
Network | |||||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP | ||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||
Client | EZStation Ezview EZLive | ||||
Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||
Interface | |||||
Audio I/O | Audio cable | ||||
1 Input: impedance 35kΩ; amplitude 2V [p-p] | |||||
1 output: impedance 600Ω; amplitude 2V [p-p] | |||||
Alarm I/O | 2/1 | ||||
Network | 1 x RJ45 10M/100M Base-TX Ethernet | ||||
Serial Port | 1 RS485 | ||||
Certifications | |||||
Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 | ||||
General | |||||
Power | DC12V(±25%), PoE+(IEEE802.3at) | ||||
Power consumption: Max 14W | |||||
Support overcurrent protection , Input short circuit protection | |||||
Dimensions (Ø x H) | Φ306.4x104.1x98.1mm(Φ12.1’’x4.1’’x3.9’’) | ||||
Net Weight | 1.65kg(3.64lb) | ||||
Material | Metal | ||||
Working Environment | -30°C ~60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||
Storage Environment | -40°C ~70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) | ||||
Surge protection | 6KV | ||||
Vandal Resistant | IK10 | ||||
Ingress Protection | IP67 |
