EZStation Software - Uniview USA - Leader of AIoT Solution

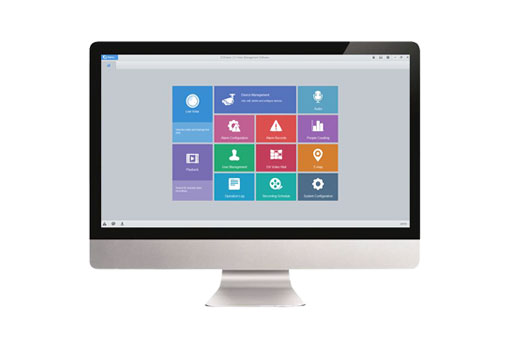

Unified management for Uniview’s IP cameras, NVRs, hybrid NVRs, network keyboards, decoding devices, and access control etc.

Efficient device management: Automatic device discovery (or search by network segment); add devices by IP address/domain name; add devices by EZDDNS; add devices and adjust time in batch.

Diverse functions:

Live view: scene, custom layout, split screen, auxiliary screen display, corridor mode, sequence display, audio, two-way audio

Recording: local recording, alarm-triggered recording, scheduled recording, recording download

Playback: synchronous/asynchronous playback, instant playback, recording search by time/event, and play recordings on SD card

PTZ control: preset, preset patrol, recorded patrol, patrol plan

Alarm: Service alarm (event alarm), device alarm (online/offline, etc.), alarm triggering (live view, etc.), real-time/history alarm management

E-Map: hot spot, hot zone, eagle eye, and map alarm

Video wall: live view, sequence display and playback on video wall, alarm to video wall, open window(s) by one click, auto bind decoding channel, multi-window for one decoding channel, save and switch scene, small pixel pitch LED, virtual LED

Function	Description
*Note:* Functions and system requirements may vary with software version.
Device Management
Features	Device discovery (auto discovery, specify network segment) Add devices by IP address/domain name/ EZDDNS Cloud device management(add, edit, delete and share) Group devices, view device status, restart device Remote configuration(image parameters, encoding parameters, OSD) Fisheye camera supported
Live View
Screen Layout	1/ 4/ 5 /6 /8 /9 /10 /13 /16 /17 /25 /32 /36 /64 split view 1 / 4 / 9 / 16 / 25 default view and custom view 3 auxiliary screens
PTZ Control	Pan, tilt, zoom, shortcut PTZ, focus, preset, patrol, 3D positioning, IR control, wiper control, heat control, snow removing *Note:* Actual functionality may vary depending on device capability.
Features	Group display, sequence display, snapshot, digital zoom, scene, instant playback, local recording, default and custom view, custom stream, corridor mode, audio, two-way audio, and manual alarm
Playback
Recording	Play back recording from NVR and SD card 16-ch (Async)/16-ch (Sync) playback Display recording status on a calendar Recording in .ts, .mp4 format
Features	Local recording, scheduled recording, alarm triggered recording, search recording by time/recording type, recording download, snapshot, digital zoom, -16x~16x speed for forward and backward, audio, instant playback, play back local recordings, playback by image, playback by frame, playback in default/custom view
Alarm
Type	Multiple alarm types.
Alarm Triggering	Live view, recording, email, preset, sound and etc. Trigger other IPCs
Alarm Records	Real-time alarm info display and acknowledge History alarm display/acknowledge/query
E-Map
Format	PNG/JPEG/BMP
Map Alarm	Alarm flash, search and acknowledge
Features	Hot spot, hot zone, map zoom in/out, eagle eye
User Management
User Management	Add, edit and delete user, query user
User Level	Super administrator, administrator, operator
User Info	User name, password, user level, permissions Different default permissions for different user levels Assignable permission(s) of each IPC
System Configuration
Audio & Video	Configure video processing mode, display mode, stream transmission protocol Enable shortcut PTZ control, GPU mode Configure snapshot mode, image save path Configure format and save path for local and downloaded recordings
System	Enable auto login to EZStation/ Windows Set retention period for operation/alarm log Import and export configuration
Operation	Set alarm duration, alarm recording start and end time Enable auto time sync, set synchronization interval Configure SMTP server and email address used to send/receive emails

Product	OS	CPU	Graphic Card	Memory
EZStation 3.0 64-bit	windows 7 windows 8 windows 10	i5-7500@3.40GHz	NVIDIA GeForce GT 1030	8GB or higher
		i7-6700@3.40GHz	Intel（R） HD Graphics 530	8GB or higher
		i7-6700@3.40GHz	Intel（R） UHD Graphics 730 NVIDIA GeForce RTX 2070 NVIDIAGeForce GTX 1050Ti	8GB or higher
		i7-8700@3.20GHz	NVIDIA GeForce RTX 2070	8GB or higher
	windows 11	i5-12400@2.5GHz	Intel(R) UHD Graphics 730	16GB or higher
		i5-12500@3.0GHz	Intel(R) UHD Graphics 770	16GB or higher
		i5-14400@2.5GHz	Intel(R) UHD Graphics 730	16GB or higher
		i7-12700@2.10GHz	NVIDIA GeForce RTX A1000	16GB or higher
		i7-13700@2.10GHz	NVIDIA GeForce RTX 4060	16GB or higher
		i7-14700@2.10GHz	NVIDIA GeForce RTX 4060 Ti	16GB or higher
EZStation 3.0 32-bit	windows 7 windows 8 windows 10	i5-7500@3.40GHz i7-6700@3.40GHz i7-8700@3.20GHz	Intel（R） HD Graphics 530	4GB or higher
EZStation 3.0 Mac	mac os 12/13/14/15	Intel Core i5 3.1 GHz or higher	-	4GB or higher

UNV EZStation3.0 Video Management Software Datasheet_V1.8

User_Manual_Eng.pdf

Windows：EZStation-B1130.3.18.3

Mac：EZStation-B1113.3.18.1

UNV EZStation 3.0-Reference Configuration for Decoding Performance
