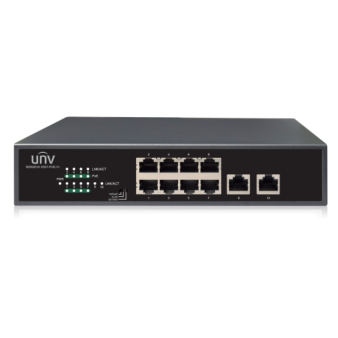

NSW2010-10GT-POE-IN

Ethernet Switch(POE)

Specification

Download

Class	Date	Title	Language	Type	Preview	Download
Datasheet	2025/6/20 11:37:20	UNV NSW2010-10GT-POE-IN Gigabit Ethernet Switches.pdf	English	pdf	Preview	Download

Class	Date	Title	Type	Download
HD Image	2026/8/24 10:26:55	NSW2010-10GT-POE-IN_HD_Image_1.png	png	Download

Want to learn more?

0%

	NSW2010-10GT-POE-IN
Hardware Specification
Ports Type	8×1000Mbps PoE ports (RJ45)+2×1000Mbps ports(RJ45)
Switching capacity	20 Gbps
Standards	IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at
Packet Buffer	2 M bit
Forwarding performance	14.88Mpps
Power Supply	AC: 100 to 240V, 50/60Hz
MAC	2K
PoE Standard	IEEE 802.3af, IEEE 802.3 at
PoE Mode	ModeA (1236)
Max.PoE Power	120W
Max.Power	130W
Cooling Fans	1
Operating Temperature	0°C to 40°C (32°F to 104°F)
Operating Humidity	10% to 90% (noncondensing)
Indicator	PWR: Steady on: AC input is normal Off: No AC input PoE: Off: No PoE power supply Steady on: PoE power supply is normal Flashing: PoE power supply is abnormal LINK/ACT: Off: No link Flashing: Transmitting data
Weight	<1.24kg
Working Mode	Default (Normal mode) : All ports can communicate with each other, VLAN (Secure mode): Downlink ports can communicate only with uplink ports., Extend (Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports
Dimensions (W×D×H)	220mm x 150mm x 44mm (8.7"×5.9"×1.7")
