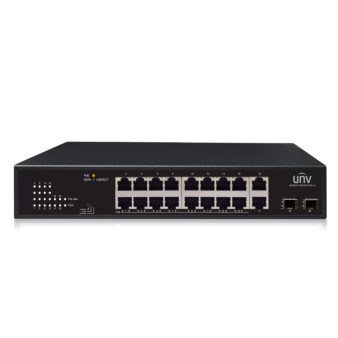

NSW2010-18GT2GP-POE-IN - Uniview USA - Global AIoT Solutions Provider

NSW2010-18GT2GP-POE-IN

Ethernet Switch(POE)

Specification

Download

Class	Date	Title	Language	Type	Preview	Download
Datasheet	2025/6/20 11:37:30	UNV NSW2010-18GT2GP-POE-IN Gigabit Ethernet Switches.pdf	English	pdf	Preview	Download

Class	Date	Title	Type	Download
HD Image	2026/8/24 10:26:55	NSW2010-18GT2GP-POE-IN_HD_Image_1.png	png	Download

Want to learn more?

0%

	NSW2010-18GT2GP-POE-IN
Hardware Specification
Ports Type	16×1000Mbps PoE ports (RJ45)+2×1000Mbps ports(RJ45)+2×1000Mbps ports（SFP）
Switching capacity	40 Gbps
Standards	IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at
Packet Buffer	4 M bit
Forwarding performance	29.76Mpps
Power Supply	AC: 100 to 240V, 50/60Hz
MAC	8K
PoE Standard	IEEE 802.3af, IEEE 802.3 at
PoE Mode	ModeA (1236)
Max.PoE Power	185W
Max.Power	200W
Cooling Fans	1
Operating Temperature	0°C to 40°C (32°F to 104°F)
Operating Humidity	10% to 90% (noncondensing)
Indicator	PWR: Steady on: AC input is normal Off: No AC input PoE: Off: No PoE power supply Steady on: PoE power supply is normal Flashing: PoE power supply is abnormal LINK/ACT: Off: No link Flashing: Transmitting data
Weight	<4.2 kg
Working Mode	Default (Normal mode) : All ports can communicate with each other, VLAN (Secure mode): Downlink ports can communicate only with uplink ports., Extend (Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports
Dimensions (W×D×H)	280mm x 180mm x 44mm (11"×7.1"×1.7")
