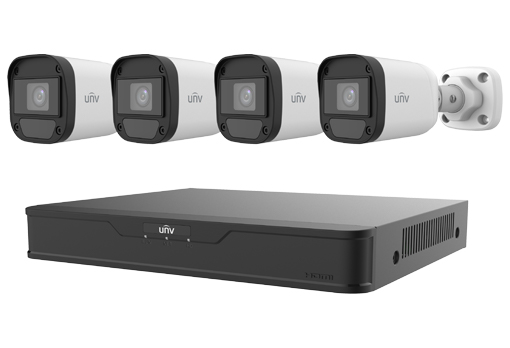

XVR301-04G3
Support H.265/H.264 video formats
Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
4-channel BNC input
Support 1-ch HDMI output, 1-ch VGA output at up to 1920*1080
UAC-B112-F28
2MP high quality image
TVI/AHD/CVI/CVBS
IR-cut filter with auto switch (ICR)
Supports 180° horizontal flip, 180° vertical flip
OSD configuration menu, easy to operate
IP67 waterproof and dustproof design, high reliability
OSD configuration menu in 11 languages
| Model | XVR301-04G3 | |
| Video/Audio Input | ||
| Analog Video Input | 4-ch, BNC | |
| IP Video Input | 2-ch(only IP up to 6ch), each channel up to 4MP | |
| Supported Analog Camera Types | Support AHD input: 5MP@20fps 4MP@30fps 1080P@30fps 720P@60fps Support TVI input: 5MP@20fps 4MP@30fps 1080P@30fps 720P@60fps Support CVI input: 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps Support CVBS input | |
| Audio Input | 1-ch, RCA | |
| Audio Compression | G.711U | |
| Video/Audio Output | ||
| VGA Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | |
| HDMI Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | |
| Audio Output | 1-ch, RCA | |
| Synchronous Playback | HD:2-ch SD:4-ch | |
| Live view display | HDMI/VGA: 1/4/6/8/9 | |
| Two-way Audio | 1-ch, RCA | |
| Network | ||
| Incoming Bandwidth | 16Mbps (Up to 24Mbps after all analog channel conversion) | |
| Outgoing Bandwidth | 48Mbps | |
| Remote Users | 128 | |
| Protocols | TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP | |
| Browser | IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows | |
| Encoding | ||
| Recording Resolution | 5MP Lite/4MP Lite/1080P/720P/CIF | |
| Recording Frame Rate | Main stream: | Sub stream: |
| 5MP Lite@12fps | D1@12fps | |
| 4MP Lite@15fps | D1@15fps | |
| 1080P@15fps | D1@15fps | |
| 720P@25fps | D1@25fps | |
| Audio Sample Rate | 8KHz,16 bit per channel | |
| Audio Bit Rate | 64Kbps per channel | |
| Decoding | ||
| Capability | Analog: 2 x 5MP Lite@12, 2 x 4MP Lite@15, 2 x 1080P@15 IP: 1 x 4MP@30, 2 x 1080P@30 | |
| Hard Disk | ||
| SATA | 1 SATA interface | |
| Capacity | Up to 8TB for each HDD (The maximum HDD capacity varies with environment temperature) | |
| General Alarm | ||
| General Alarm | Motion detection | |
| Alert Alarm | IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | |
| External Interface | ||
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface | |
| USB Interface | Rear panel: 2 x USB2.0 | |
| General | ||
| Power Supply | DC 12V Power Consumption: ≤ 8 W( without HDD ) | |
| Working Environment | -10°C to + 55°C ( +14°F to +131°F ), Humidity ≤ 90% RH(non-condensing) | |
| Dimensions(W×D×H) | 260mm ×226mm× 47mm (10.2" × 8.9"×1.8") | |
| Weight ( without HDD ) | ≤1.1 Kg ( 2.42lb ) | |
| Certification | ||
| Certification | UL , CE , FCC , RoHS , WEEE | |
| Model | UAC-B112-F28 |
| Sensor | |
| Pixel | 2MP |
| Size | 1/3" |
| Minimum Illumination | 0.02 lux (F2.0, AGC ON) 0.00 lux (IR on) |
| Lens | |
| Lens | 2.8mm |
| Lens Mount | M12 |
| Angle of View | H: 90.5° V: 49.6° D: 109.5° |
| Illuminator | |
| Illuminator | One IR illuminator |
| Illumination Distance | 20m |
| Lifetime | ≥60,000 hours |
| Video | |
| Resolution | 1080P: 1920(H)×1080(V) 720P: 1280(H) ×720(V) |
| Frame Rate | TVI/AHD/CVI: 1080P@30fps, 1080P@25fps; 720P@30fps, 720P@25fps CVBS: PAL, NTSC |
| Shutter Time | PAL: 1/25s-1/50000s NTSC: 1/30s–1/50000s |
| Image | |
| Exposure Mode | 4 modes: Global (default), BLC, HLC, DWDR |
| Day/Night | 3 modes: Auto (default), Day, Night |
| Digital Noise Reduction | 2D |
| White Balance | Two modes: Auto (default), Manual |
| WDR | DWDR |
| Smart IR | Support |
| Flip | Supports 180° horizontal flip, 180° vertical flip. |
| Interface | |
| Power | 5.5mm power interface |
| Video Output | BNC, supports TVI/AHD/CVI/CVBS |
| Operating Environment | |
| Temperature | -30℃ to 60℃(-22℉ to 140℉) |
| Humidity | ≤95% (RH, non-condensing) |
| Surge Protection | 4KV |
| Ingress Protection | IP67 |
| General | |
| Power | DC 12V(±25%), with reverse polarity protection and surge protection, Max 2.88W |
| Mount | 3D bracket supplied, surface mount (default), optional backbox, pole mount bracket |
| Dimensions | 142mm × 63mm × 65mm (5.6" × 2.5"× 2.6") (L×W×H) |
| Material | Plastic |
| Weight | 135g(0.30lb) |
| Certification | CB, CE, FCC |
