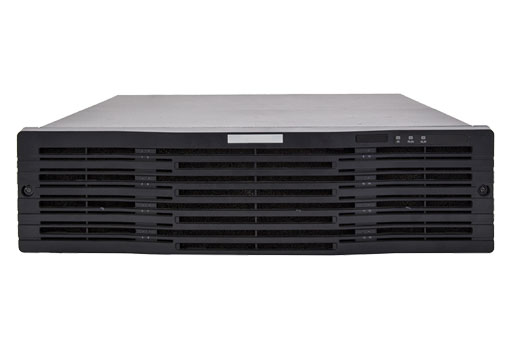

The innovative enclosure with 477.1mm depth and 3U height that holds up to 16 disks, is space-saving and applicable to the standard rack-mounted scenarios.
Disk powered on sequentially during system startup, protection from impulse current.
Multistage fan speed and energy saving
Fans with multistage speed are configured in the hot-swappable frame in redundancy mode. System power consumption can be balanced intelligently with heat dissipation calculation to ensure low power consumption and stable operation of the system.
Redundant power supplies
|HDD||16 SATA Interfaces|
|Disk Capacity||up to 8TB for each disk|
|Back-end Expansion Interface||1 mini SAS|
|Power Supply||100 ~ 240V|
( with HDD )
|Working Environment||-10 °C~ 55 °C |
5%~95% RH (non-condensing)
|Weight(Without HDD)||< 10kg(22lb)|
|Dimensions (W×D×H)||481.6 × 477.1× 130.5mm (18.96” × 18.78” × 5.14”)|
