More Professional, More Reliable
Management Center

Management center is the place for security managers and security guards to check live view and playback through video walls, PC workstations and other display devices. Based on the real-time view of the front camera, it verifies the alarm and dispatches the guard to the scene of the accident.

Reliable & Low-TCO System

NGN Architecture

Media streaming and signaling are processed separately. Video management server only handle signaling. The server’s failure will not influence the video storage and live view.

Traditional Architecture               NGN Architecture

In traditional architecture, video recording would be lost when recording server stops running. This issue will be overcome in UNV’s NGN architecture where network camera sends the stream to IP SAN directly based on iSCSI standard storage protocol. It significantly decreases the investment because there is no media server and recording server in NGN architecture.

VMS 1+1 Hot Spare

UNV VMS supports 1+1 hot spare function. If the Master VMS breaks down, the Standby VMS will take over the service immediately. All service and data will be transferred back to Master VMS when it recovers from failure.

High-Reliable IP Storage

Different types of carrier-class hardware designs ensure high reliability and 7/24 operating capabilities.

Fully Redundant Modular Design

Anti-Dust & Sulfide Alarm Design

Anti-Vibration HDD Module


UNV cameras can automatically store video recordings into camera’s SD card when network is disconnected. Once the network is restored, the video recordings will be sent back to the storage server. Thus, all of video recordings would be saved even network fails temporarily.

IP Storage N+1

UNV IP SAN supports N+1 hot backup. If any active IP SAN fails, the standby IP SAN will automatically take over the service.

Cost-Effective Design

UNV IP storage adopts unique structure allowing 60 bays at a height of 4U with front panel hot swappable. Hence, UNV solution can save more than 60% rack space and much more power consumption under the same condition.

Traditional System

UNV system

Abundant VMS Functions

Complete CCTV Functions

UNV VMS is a reliable and easy-to-use management platform. Live view/playback, TV wall management, and user role management are all available on VMS client.

Remote Application

Security guards are able to check live view, playback and alarm notifications anytime and anywhere through UNV’s APP EZView. It helps to work easier with higher efficiency.

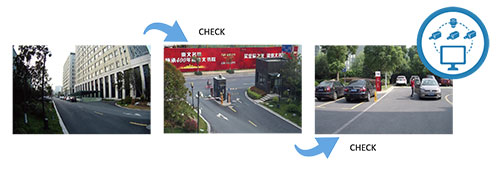

Video Patrol

Security guards can patrol university with a group of cameras that can be configured in advance. The live view of this group of cameras will switch one by one after operators click the check button.

Watermark for Data Safety

Video recordings can be watermarked with customized content to prevent video recordings from unauthorized editing, which ensures creditable video record.

Quick Location of Accident


LED TV walls can be extended to any size, and have a seamless and wide angle view in the management center. With low maintenance cost and low space occupation, the UNV LED TV wall is designed and manufactured to the highest standards to meet constant work requirements of 24/7 and provide efficient video surveillance experience.

Friendly User Interface

UNV VMS is an easy-to-use management platform designed for CCTV system. Its flexible and feature-rich interface helps security guards easier and more efficiently verify alarms and coordinate a response.

Instant Playback

In order to playback a certain camera’s record quickly, one-click playback function is available on UNV VMS. Security guards can playback the last 5 minutes’ record instantly with only one button.

Video Track

When the object is captured by multiple cameras, multiple windows can be displayed on one screen once video track function is activated. Click one of the cameras in the E-map, the live views of both that camera and cameras nearby are displayed, helping to locate the moving object.

Video Frame Extraction

Video can be divided into several parts with the same interval, the first frame of each part would be displayed automatically on the screen, forming a group of pictures to help security guards locate the object quickly.


VMS client supports flashing alarms on E-maps and links live view on a video wall. It enables security guards to faster locate alarming area, which significantly shortens their reaction time.

Not Only VMS

Uniview provides a comprehensive security platform which can integrate with other security subsystems such as access control system, alarm system, etc. And UNV management platform also provides interface for other systems to obtain live view, records and other functions through SDK.
